Guangzhou OSUNSHINE Environmental Technology Co., Ltd 86-020-38246006  info@ozocenter.com

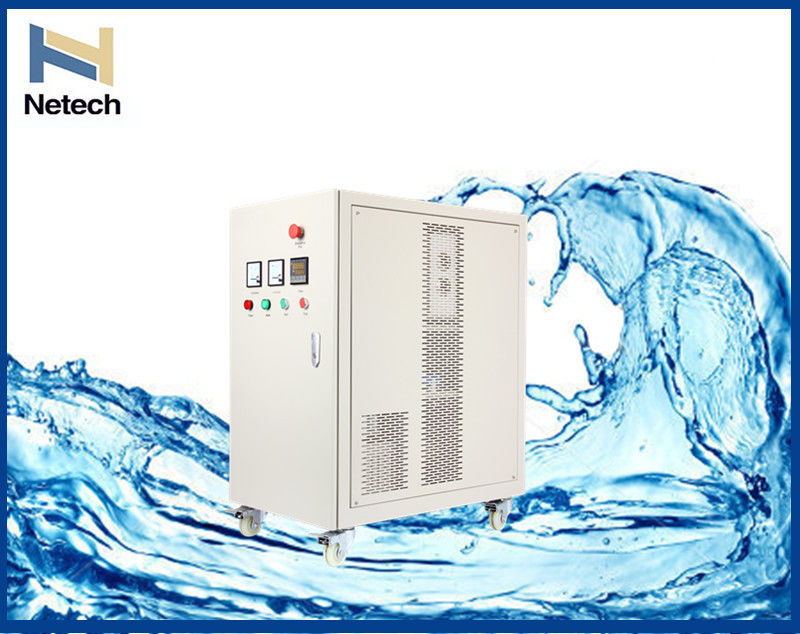

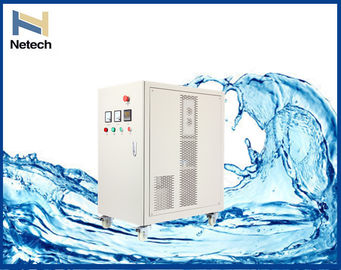

5G - 30G Drinking Water Treatment Ozone Water Purifier 12 Months Warranty

5G - 30G Drinking Water Treatment Ozone Water Purifier 12 Months Warranty

  • High Light

    ozone generator water treatment

    ,

    ozone generator wastewater treatment

  • Model Number
    NT-YFC
  • Adjustable Range
    20%-100%
  • Voltage
    220V/ 50Hz Or 110V/60Hz
  • Ozone Produced Method
    Corona Discharge
  • Feed By
    Oxygen
  • Oxygen Flow Rate
    3-15LPM
  • Cooling Way
    Air Cooling
  • Material
    Ceramic Tube
  • Application
    Drinking Water / Swimming Pool / Aquactulture Water Purifier
  • MOQ
    1 SET
  • Warranty
    12 Months
  • Ozone Output
    5g/10g/15g/20g/30g
  • Place of Origin
    China
  • Brand Name
    Netech
  • Model Number
    NT-YFC
  • Minimum Order Quantity
    1
  • Price
    USD 1000-4000 per set
  • Packaging Details
    cartons case
  • Delivery Time
    3-5 working days
  • Payment Terms
    paypal,western union,T/T,credit card
  • Supply Ability
    1000 per months

5G - 30G Drinking Water Treatment Ozone Water Purifier 12 Months Warranty

5G - 30G Drinking Water Treatment Ozone Generator / Ozone Water Purifier







Quick details

Brand Name:              Netech

Model Number:           NT-YFC

Certification:               domestic
Ozone output way:      air cooling

Warranty:                    one year warranty
Adjustable rate:           20-100% adjustable ozone



Features:

1. Carbon steel sprayed with plastic housing;

2. Built-in PSA high purity twelve tower oxygen sieve;

3. Built-in of product –Air cooling Ceramic ozone tube with high frequency electric board, high ozone concentration and stable ozone capacity, long life time;

4. Built-in Oil-free air compressor;

5. Built-in Air dryer and filters. To supply cool, dry, clean air source for air compressor and PSA oxygen concentrator;

6. Manual control, easy operation and maintenance.



Control panel:

Voltmeter, Ammeter, Timer, Ozone Ammeter, Main switch, Power supply switch, Emergency stop, working light, Power light, Alarm



Control protection:

Over current protection

Electric leakage protection

Short circuit protection

Over heat of air compressor protection

Time delay system protection





Specifications

Item Unit NT-YFC5G NT-YFC10G NT-YFC15G NT-YFC20G NT-YFC30G
Oxygen flow rate LPM 3 3.5 5 8 10
Ozone concentration Mg/L 48.5~52.3 48.5~52.3 49.5~51.2 38.9~41.7 53.2~56.1
Ozone output G/Hr 5 10~11 14.8~15.4 18.6~20 32~34
Power KW ≤0.48 ≤0.81 ≤0.924 ≤1.00 ≤1.23
Current A 2.2 3.6 4.2 4.5~4.7 5.6±5%
Voltage V 220V/50HZ
NW KG 64 86 89 92 97
Size cm 45x50x84 50×66×95 45*93*118



Noted:

1. Above ozone capacity were tested under oxygen source

2. Net weight will be 10% different for different plug.





 5G - 30G Drinking Water Treatment Ozone Water Purifier 12 Months Warranty 0

5G - 30G Drinking Water Treatment Ozone Water Purifier 12 Months Warranty 1

5G - 30G Drinking Water Treatment Ozone Water Purifier 12 Months Warranty 2





Application

1. treatment industry: clean ward, operating room, treatment equipment, aseptic room, etc;

2. Laboratory: industrial oxidation of flavor and pharmaceutical intermediate;

3. Food processing industry: keep fruits and vegetables fresh and cold storage; rice & wheat storage; or storage room air clean.

4. Sea food factory: Remove smell of sea food factory and kill bacteria;

5. Slaughtering: Remove smell of slaughtering and kill bacteria;

6. Poultry factory: Remove smell of poultry factory and kill bacteria;

7. Green house: air clean and kill bacteria.

8. Agricultural: fish farm water treatment

9. Swimming pool water treatment

10. Drinking water treatment






Question and answer
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one death reported caused by ozone poisoning.


Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficently and resolve the harmful material in a short time.





Quality control



Every procedure has personnel inspection.

All the products must be tested and qualified before packaging.



After sales service



We provide 12 month free maintenance.

The buyer should return the product in the original conditions to us and should

bear the shipping costs for return.

 5G - 30G Drinking Water Treatment Ozone Water Purifier 12 Months Warranty 3
