air cooling ozone ceramic ozone tube for air purifier and water treatment

air cooling ozone ceramic ozone tube for air purifier and water treatment

  • High Light

    ozone accessories

    ,

    ceramic ozone tube

  • Commodity Name
    Ceramic Casting Tubes
  • Ozone Output
    2-15
  • Discharge Material
    Ceramic
  • Ozone Generating Way
    Corona Discharge
  • Ozone Adjustable
    20-100%
  • Generator Type
    Ozone Generator Tube
  • Warranty
    1 Year
  • Place of Origin
    China
  • Brand Name
    air cooling ceramic ozone tube
  • Model Number
    NT-PTF
  • Minimum Order Quantity
    1
  • Packaging Details
    with froth in cartons or wooden case
  • Delivery Time
    3 to 5days
  • Payment Terms
    paypal,western union,T/T,credit card
  • Supply Ability
    1000 per weeks

air cooling ozone ceramic ozone tube for air purifier and water treatment

air cooling ozone ceramic ozone tube for air purifier and water treatment



Detailed Product Description



Ambient temperature 21 Oxygen feed flow rate 0.5-1
Cooling Mode: Air Cooling Ozone output 4.2-7.2
Ambient humidity 40 IPower supply weight 0.76
Power ≤80 ozone tube dimensions 165×90*90







Quick Detail



1, Easy to maintain and install

2. air cooling ceramic .

3, Low working voltage

4. high concentration





Description



MOQ 1 sets
ozone produced medium ceramic
output 1g 3g 5g 6g 7g
cooling way air cooling
adjustable range 20%-100%
ozone produced method corona discharge
voltage 220V/ 50Hz or 110V/60Hz
warranty repair or change new parts during 12 months

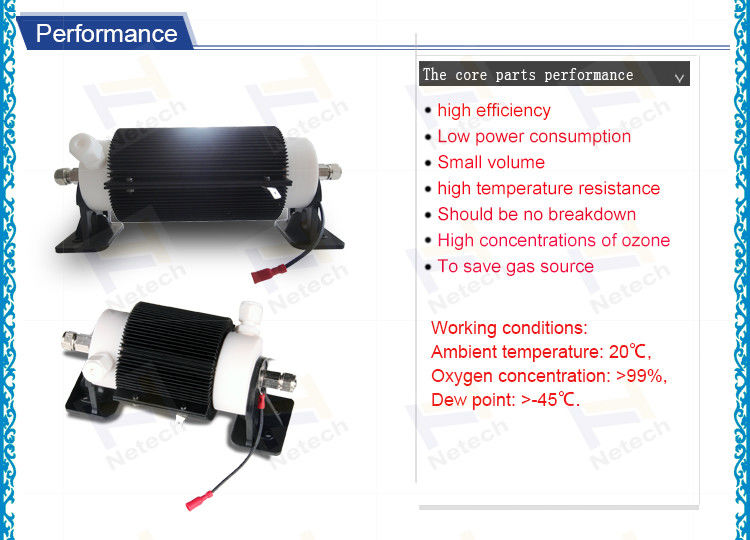

Features



  1. Extremely low rate of ozone decay & high ozone concentration.

Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.

  1. Domestic product-got domestic in 2008.

Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.

  1. Low working voltage

The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.

  1. Small in size.

It saves space effectively. The size is 1/4 smaller than similar products.

  1. Easy to maintain and install





  •



Item Unit NT-PTF
2GM 2GA 3GM 3GA 5GM 5GA 6GA
Oxygen feed flow rate LPM 0.5-2 1-3 1.2-3 1-2.5
Ozone concentration Mg/L 50.3-28 65-28 60-32 50-39
Ozone output G/Hr 1.5-3.36 3.9-5.04 4.32-5.76 3-5.85
Power Kw 0.040 0.050 0.080 0.085
Output frequency KHz 7-15
High voltage output V 3600V Peak to Peak
Power supply dimensions mm 165×65×52 200×75×83 165×65×52 200×75×83 165×65×52 200×75×83 215×87×85
Location of mounting holes of power supply mm 152(5) 190.5×57 152(5) 190.5×57 152(5) 190.5×57 /
Cooling method / Air cooling for internal and external electrode
Fitting size for air & ozone mm ID6, ED8
Ozone output adjustable range % / 20-100 / 20-100 / 20-100
Dew point °C -45
Line power supply V/Hz 110/220V 50/60Hz
Ozone tube dimensions mm 162×60 182×60 200×60 227×60
Mounting hole foot print of ozone tube mm 140×28(5) 160×28(5) 177×28(5)

204.5×28

(5)

Ozone tube weight Kg 0.50 0.53 0.56 0.65
Power supply weight Kg 0.59 0.76 0.59 0.76 0.59 0.76 1.10






Quality control



Every procedure has personnel inspection.

All the products must be tested and qualified before packaging.





After sales service



We provide 12 month free maintenance.

The buyer should return the product in the original conditions to us and should

bear the shipping costs for return.





Question and answer


Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one death reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficently and resolve the harmful material in a short time.





MOQ 1 Set/Sets
FOB Price: USD 200-900 / Set
Port guangzhou
Payment L/C D/A D/P T/T Western Union MoneyGram
others credit card/ paypal
Supply ability 5000 Set/Sets / Month
Packing Safe double carton package with foam inside for protection
Delivery date 1-7 working days after received your payment
