Brand Name: Netech
Model Number: NT-Y
Ozone output way: corona discharge
Warranty: one year warranty
Adjustable rate:20%-100% adjustable ozone
|Oxygen flow rate||1-18LPM|
|Power supply||220V , 50HZ|
|Commodity||Ozone water system|
40g/h 50g/h 100g/h
How to use ?
1. Before use this machine, put it in a stable flat place which can hold its weight.
2. Use the power equipped with the machine;
3. The machine use for air purification, firstly attach the silicone tube into the
ozone outlet and then turn on the power;
4. Set the timer and then come out ozone, and put the tube into the room.
5. When use for room air purification, it requires nobody is present , after 30
minutes people can walk into the room.
6. If use for water treatment, it also need the venturi and anti-return box.
1. With built-in oxygen system, carbon steel sprayed with plastic or SS housing complete ozone generator
2. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time
3. Adjustable ozone range: 20%--100%, it can working automatic
4. Compact assembly,Movable with Wheels
5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety

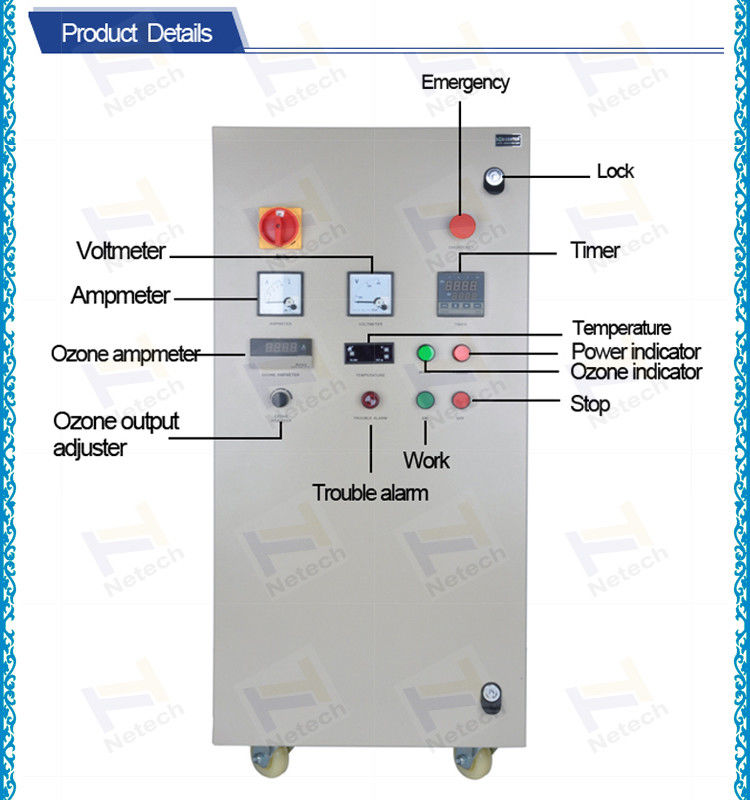

Ozone output adjuster, Voltmeter, Ampere, Timer, Cooling water temperature indicator, Ozone Ampere, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm
|Oxygen flow rate||LPM||5~15||8~18||16-32|
|Cooling water flow||LPM||48|
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug
Question and answer
♦ Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
So far there is no one dead reported caused by ozone poisoning.
♦ Does the ozone generator work efficiently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide.It can kill escherichia coli,
bacteria efficiently and resolve the harmful material in a short time.
