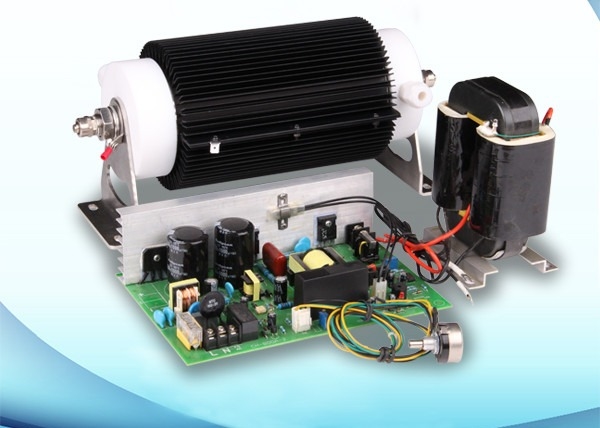

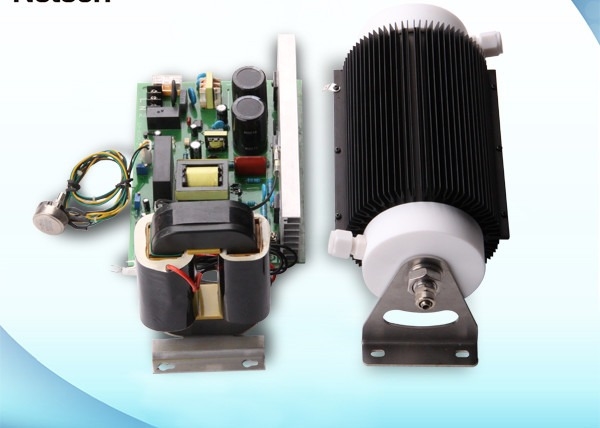

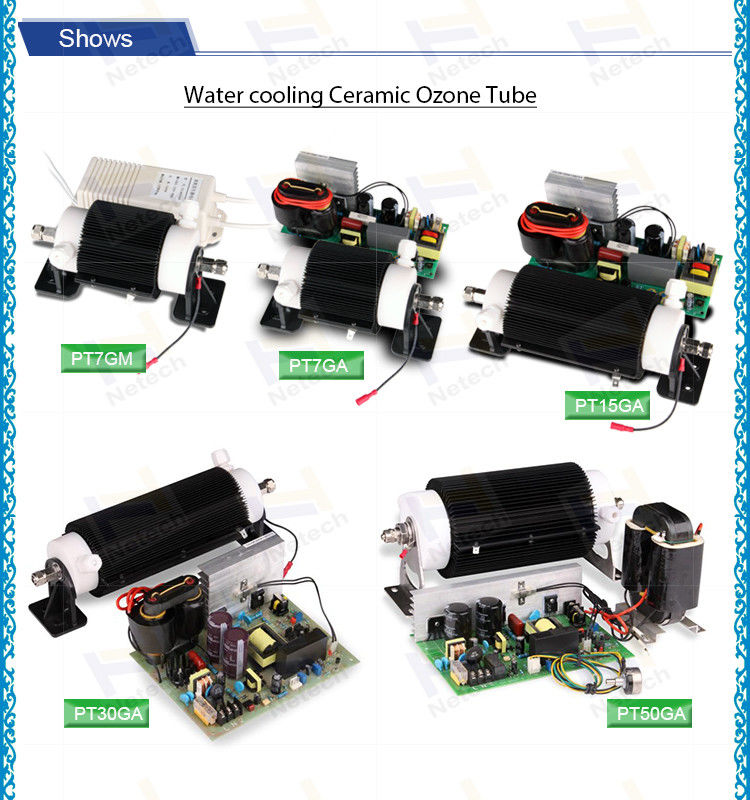

water cooling ceramic tube
1, Easy to maintain and install
2. air cooling ceramic tube
3, Low working voltag
4.Higher ozone concentration for water
MOQ 1 sets
ozone produced medium ceramic
output 7g 15g 30g 50g
cooling way air and water cooling
adjustable range 20%-100%
ozone produced method corona discharge
voltage 220V/ 50Hz or 110V/60Hz
warranty repair or change new parts during 12 months
Quality Very high quality
1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration is around 40~70 mg/L, which is much higher than conventional products.
2. Domestic product -- got domestic in 2008.

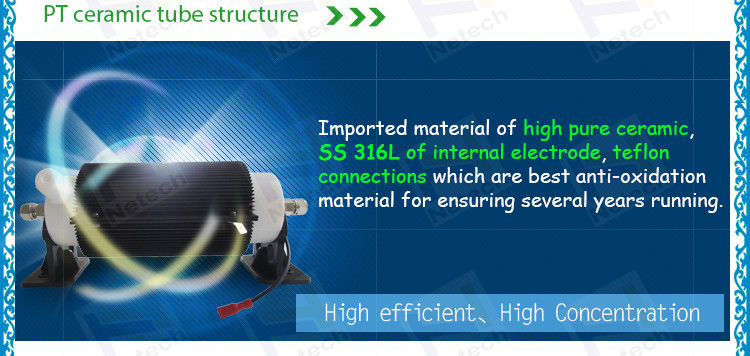

A The internal electrode cooled by water, external electrode cooled by air (fan).
B The aluminum plate looks like sun flower which has larger cooling area, easy for heat dissipation.
C High technology—the thickness of ceramic tube is only 1.70 mm.
3. Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
It is 1/4 smaller than similar products with same capacity.
5. Easy to maintain and install
|Oxygen feed flow rate||LPM||1~3||3~5||7~9||15~18|
|Cooling way||Air cooling for external electrode,water cooling for internal electrode|
|Cooling water flow rate||LPM||>2|
|Diameter of cooling water pipe||mm||ED10|
|Temperature of cooling water||°C||Ambient temperature ±8°C|
|Diameter of cooling fan||mm||1pcs Dia.150 fan||2pcs Dia.150 fan|
|Diameter of Gas inlet/outlet||mm||ED6||ED8||ED8||ED8|
|Ozone output adjust range||%||/||20-100||20-100|
|Line power supply||V/Hz||110/60 220/50|
|Ozone tube dimensions||mm||200×100×105||260×100×105||340×160×125||325×135×150|
|Power supply dimensions||mm||177×66×53||201×86×83||212×90×95||189×146×95||210×146×62|
|weight of power supply||KG||1.27||1.0||2.45||2.35|
|weight of ozone tube||KG||0.91||1.35||1.9||4.3|
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
