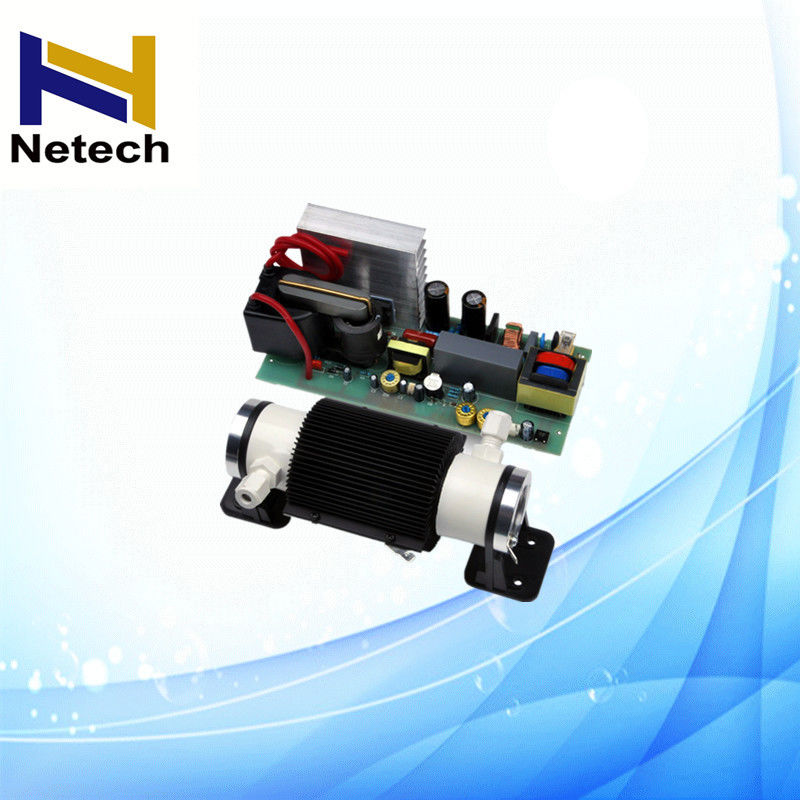

Corona Discharge Ozone Generator Parts / 1g - 7g Ozone Ceramic Plate
-
High Light
ceramic ozone tube
,ozone generator tube
-
Warranty1 Year
-
Ozone Output1g 3g 5g 6g 7g
-
Adjustable Range20% To100%
-
Generator TypeOzone Generator Parts
-
Ozone Generating WayCorona Discharge
-
Cooling WayAir Cooling
-
ApplicationAir Purification Or Water Treatment
-
MaterialHigh Pure Ceramic
-
Place of OriginChina
-
Brand NameNetech
-
Model NumberCH-PTF
-
Minimum Order Quantity1
-
Price50-120
-
Packaging DetailsSafe double carton package with foam inside for protection
-
Delivery Time3 to 5 days
-
Payment Termspaypal,western union,T/T,credit card
-
Supply Ability1000 per weeks
Corona Discharge Ozone Generator Parts / 1g - 7g Ozone Ceramic Plate
Corona discharge Ozone Generator Parts / 1g - 7g Ozone Ceramic Plate
Quick Detail
ozone generator spare parts
1. Easy to maintain and install
2. air cooling ceramic .
3. high concentration
Description
MOQ 1 sets
ozone produced medium ceramic
output 1g 3g 5g 6g 7g
cooling way air cooling
adjustable range 20%-100%
ozone produced method corona discharge
voltage 220V/ 50Hz or 110V/60Hz
warranty repair or change new parts during 12 months
Features:
1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around 28~65 Mg/L, which is much higher than conventional products
2.Domestic product-got domestic in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, <high efficiency and stable ozone output.
It saves space effectively. The size is 1/4 smaller than similar products.
| Item | Unit | CH-PTF | |||||||
| 1GM | 1GA | 3GM | 3GA | 5GM | 5GA | 6GA | |||
| Oxygen feed flow rate | LPM | 0.5-2 | 1-3 | 1.2-3 | 1-2.5 | ||||
| Ozone concentration | Mg/L | 50.3-28 | 65-28 | 60-32 | 50-39 | ||||
| Ozone output | G/Hr | 1.5-3.36 | 3.9-5.04 | 4.32-5.76 | 3-5.85 | ||||
| Power | Kw | 0.040 | 0.050 | 0.080 | 0.085 | ||||
| Output frequency | KHz | 7-15 | |||||||
| High voltage output | V | 3600V Peak to Peak | |||||||
| Power supply dimensions | mm | 165×65×52 | 200×75×83 | 165×65×52 | 200×75×83 | 165×65×52 | 200×75×83 | 215×87×85 | |
| Location of mounting holes of power supply | mm | 152(5) | 190.5×57 | 152(5) | 190.5×57 | 152(5) | 190.5×57 | / | |
| Cooling method | / | Air cooling for internal and external electrode | |||||||
| Fitting size for air & ozone | mm | ID6, ED8 | |||||||
| Ozone output adjustable range | % | / | 20-100 | / | 20-100 | / | 20-100 | ||
| Dew point | °C | -45 | |||||||
| Line power supply | V/Hz | 110/220V 50/60Hz | |||||||
| Ozone tube dimensions | mm | 162×60 | 182×60 | 200×60 | 227×60 | ||||
| Mounting hole foot print of ozone tube | mm | 140×28(5) | 160×28(5) | 177×28(5) |
204.5×28 (5) |
||||
| Ozone tube weight | Kg | 0.50 | 0.53 | 0.56 | 0.65 | ||||
| Power supply weight | Kg | 0.59 | 0.76 | 0.59 | 0.76 | 0.59 | 0.76 | 1.10 | |
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
Question and answer:
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one death reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficently and resolve the harmful material in a short time.
Domestic Design : NO.2012 3 0010170. X
Domestic Utility Model : NO.2012 2 0273958.4
Our products are sold all over the world, you can rest assured.
