Ozone Water Purifier High Concentration Ozone Generator Waste Water Treatment Device

Place of Origin Guangdong China
Brand Name Netech
Model Number NT-Y
Minimum Order Quantity 1 set
Price for futher discussion
Packaging Details Safe double carton package with foam inside for protection
Delivery Time 5-10 days after payment confirmed
Payment Terms EXW / FOB / CIF
Supply Ability 1000 sets per month
Product Details
Output 10g/hr To 100g/hr Material Ozone Enamel Tube
Application Water Treatment MOQ 1 Sets
Warrany 1 Year
High Light

high output ozone generator

,

longevity ozone generators

Leave a Message
Product Description

Built-in Oxygen Source Waste Water Treatment Device / Ozone Water Purifier



Quick details



Brand Name: Netech

Model Number: NT-Y
Ozone output way: corona discharge,water cooling
Adjustable rate:20%-100% adjustable ozone





Description



Gas source Oxygen
Oxygen flow rate 1-18LPM
Material Enamel tube
Cooling Water cooling
Power supply 220V , 50HZ
Commodity Ozone water system
Ozone output

40g 50g 100g





How to use ?



1. Before use this machine, put it in a stable flat place which can hold its weight.

2. Use the power equipped with the machine;

3. The machine use for air purification, firstly attach the silicone tube into the

ozone outlet and then turn on the power;

4. Set the timer and then come out ozone, and put the tube into the room.

5. When use for room air purification, it requires nobody is present , after 30

minutes people can walk into the room.

6. If use for water treatment, the air stone should be attached into the silicone

tube and put into the water.

7. Attention, the machine should be placed higher than the water, incase that the water reflux occur.





Features:



1. With built-in oxygen system, carbon steel sprayed with plastic or SS housing complete ozone generator

2. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time

3. Adjustable ozone range: 20%--100%, it can working automatic

4. Compact assembly,Movable with Wheels

5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety

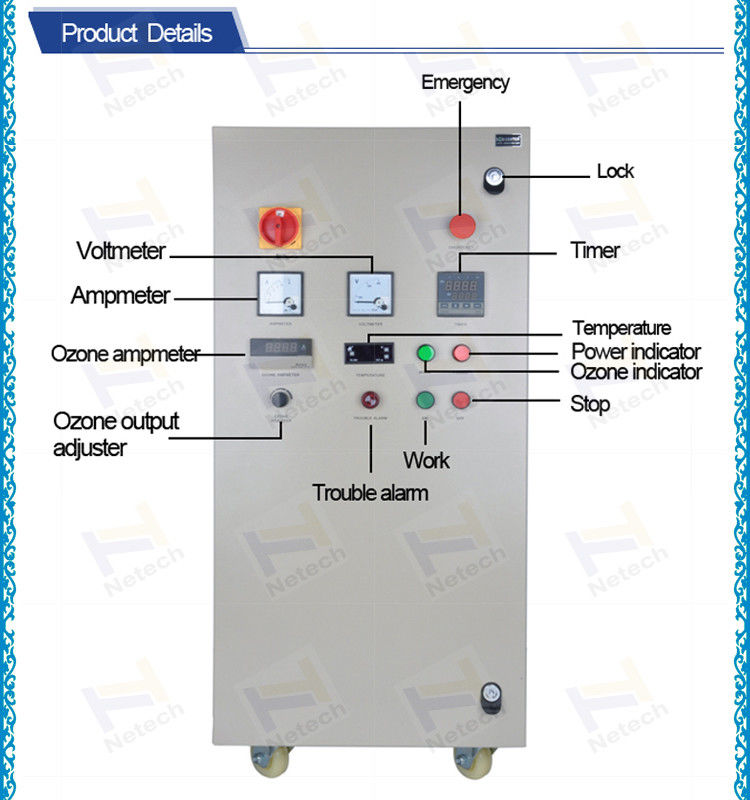

Control panel:

Ozone output adjuster, Voltmeter,  Ampere, Timer, Cooling water temperature indicator, Ozone  Ampere, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm

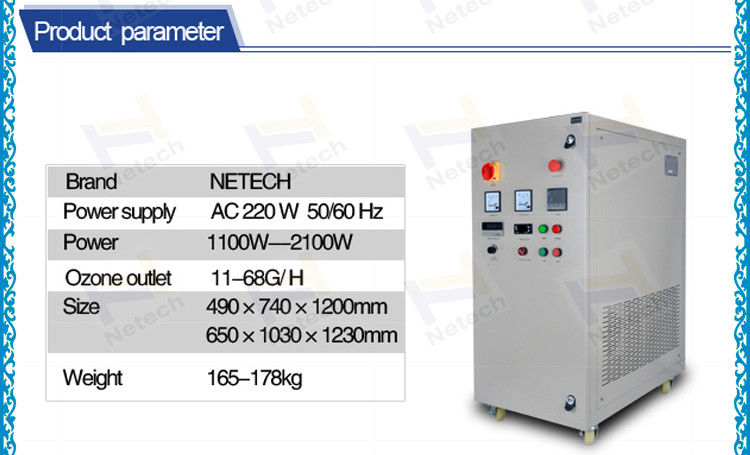

Specifications



Item Unit NT-Y40G NT-Y50G NT-Y100G
Oxygen flow rate LPM 5~15 8~18 16-32
Ozone concentration Mg/L 90~56 90~60 90~58
Ozone output G/Hr 27~50 43~64 86~111
Power Kw ≤1.62 ≤1.85 3.5
Fuse A 15 20 20
Cooling water flow LPM 48
Size mm 650×1030×1230 650×1030×1230

Noted:

1. Above ozone capacity were tested under oxygen source

2. Net weight will be 10% different for different plug
