10G - 50G Laundry Ozone Generator Water Cooling Enamel Stainless Steel
Quick details
Brand Name: Netech

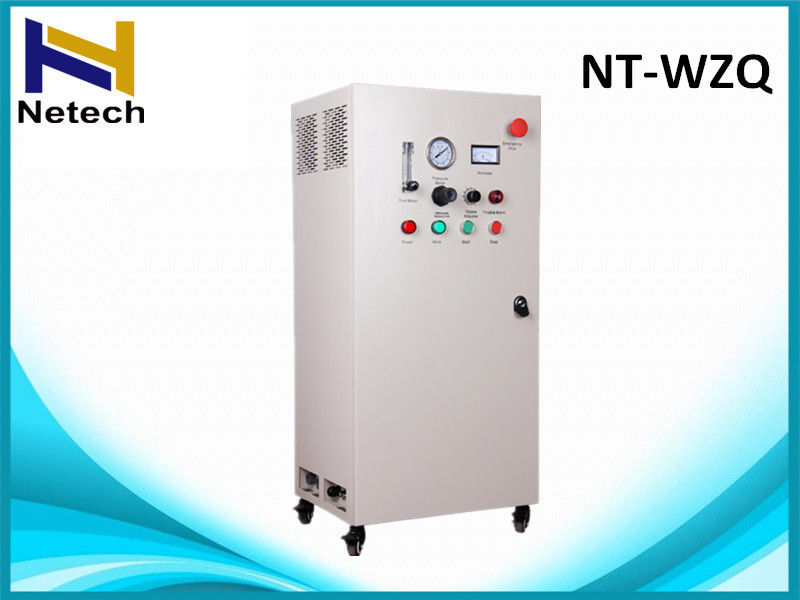

Model Number: NT-WZQ
Oxygen output: 10g/20g/30g/40g/50g/60g
Certification: domestic
Warranty: one year warranty
Usage: Water purification,agricultural irrigation,fish farm,etc.
Applications:
*Drinking water treatment, Spring water treatment ozone generator, Vegetable and fruits wash machine, *Chemical oxidation, Decolor and bleach ozone machine, Mariculture equipment, Mariculture ozone generator,
*Aquaculture ozone generator, Aquaculture recycle water treatment equipment, Raw water aquaculture equipment,
*Connect with outside gas feeding ozone generator, Nursery aquaculture equipment.
Features:
1. SS housing /carbon steel sprayed with plastic housing
2. It must connect with outside oxygen generator or oxygen tank
3. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time
4. Small in size, adjustable ozone range: 20%--100%
5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety
Control panel:
Ozone output adjuster, Flow meter , Pressure regulator, Voltmeter, Ampmeter, Switch, Emergency stop, Working light, Power light, Alarm
Specifications:
|
Item
|
Unit
|
NT-WZQ
|
|
10G
|
20G
|
30G
|
40G
|
50G
|
|
Oxygen flow rate
|
LPM
|
1~3
|
2~7
|
3~10
|
5~10
|
8~18
|
|
Ozone concentration
|
Mg/L
|
69~88
|
52~104
|
56~93
|
85~116
|
60~90
|
|
Ozone output
|
G/Hr
|
5~12
|
12~22
|
16~33
|
34~51
|
43~64
|
|
Power
|
W
|
220
|
250
|
400
|
510
|
1300
|
|
Fuse
|
A
|
3
|
3
|
3
|
5
|
6
|
|
Cooling water flow rate
|
LPM
|
30
|
48
|
|
Size
|
mm
|
460×390×840
|
Main function of ozone:
1. Food purification; To decompose the residual chemical fertilizer, pesticides and other toxic substances in fruits, vegetables and foodstuff; Remove the antibiotics, chemical additives, hormones and other harmful substances in the meat, eggs, kill Halophilic bacteria in the seafood;
2. Drinking water purification: The tap water after ozone treating is a kind of high quality drinking water; Injecting ozone gas in every 1 liter tap water for 2 minutes, can to remove the residual chlorine, taste and heavy metals in water, and up to the level of clean and cleanion. To prevent the formation of trichloromethane (CHCl3), increase the oxygen content in the water to be the ideal of pure drinking water.
3. cleanion and clean for dining utensils; Put the washed dining utensils into the ozonated water for 20 minutes to remove residual detergent. To kill Bacteria and virus to instead of the normal cleanion cabinet; avoiding the utensils of infectious diseases, also be used for cleanion for clothing, towels, rags and socks.
4. Air purification: Put the ozone exhaust pipe into the room, keeping the ozone emission 20--30 minutes to remove indoor smoke and dust, decoration odour. Increase the oxygen content in the air, clean air. Let you enjoy the fresh at home like the air after the rain in forest (applied family, office, conference rooms, entertainment and others public place for smoke or dust or taste removal and cleanion);
Why choosing us?
1. Having 10 years production experienced .We are trusty business partner.
2. Quality Controlled: Quality Control personnel check the quality at every stage
of production, from the incoming raw materials to the finished product.
3. NT-WZQ Production Capacity: 1000 pcs per month.
4. We have serial products: ozone tube , UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
