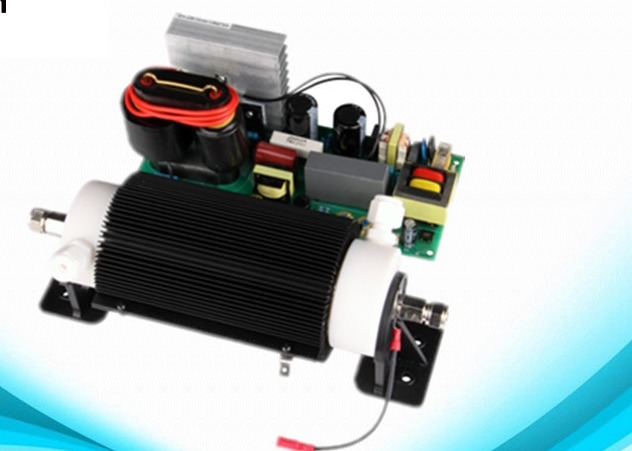

7g to 50g Air Cooling Ozone Ceramic Plate / Ozone Generator Tube / Ozone Cell
Quick Detail
Single water cooling ceramic ozone generator tube
1, Easy to maintain and install
2. air cooling ceramic tube
3, Low working voltage, high efficiency
Description
MOQ 1 sets
output 7g 15g 30g 50g
cooling way water cooling
adjustable range 20%-100%
ozone produced method corona discharge
warranty repair or change new parts during 12 months
Features:
1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration is around 40~70 mg/L, which is much higher than conventional products.
2. Domestic product -- got domestic in 2008.
A The internal electrode cooled by water, external electrode cooled by air (fan).
B The aluminum plate looks like sun flower which has larger cooling area, easy for heat dissipation.
C High technology—the thickness of ceramic tube is only 1.70 mm.
3. Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
It is 1/4 smaller than similar products with same capacity.
5.Easy to maintain and install
Specification
Item | Unit | NT-PT | ||||
7GM | 7GA | 15GA | 30GA | 50GA | ||
Ambient temperature | °C | 28 | 21.9 | 22 | 26 | |
Oxygen feed flow rate | LPM | 1~3 | 3~5 | 7~9 | 15~18 | |
Ozone concentration | Mg/L | 70-40 | 66.4~53 | 62~53 | 52~49 | |
Ozone output | G/Hr | 4.2~7.2 | 11.9~15.9 | 26~28.6 | 46.8~52.9 | |
Power (220V) | W | ≤100 | ≤100 | ≤190 | ≤300 | ≤500 |
Cooling way | Air cooling for external electrode,water cooling for internal electrode | |||||
Cooling water flow rate | LPM | >2 | ||||
Diameter of cooling water pipe | mm | ED10 | ||||
Temperature of cooling water | °C | Ambient temperature ±8°C | ||||
Diameter of cooling fan | mm | 1pcs Dia.150 fan | 2pcs Dia.150 fan | |||
Diameter of Gas inlet/outlet | mm | ED6 | ED8 | ED8 | ED8 | |
Ozone output adjust range | % | / | 20-100 | 20-100 | ||
Line power supply | V/Hz | 110/60 220/50 | ||||
Ozone tube dimensions | mm | 200×100×105 | 260×100×105 | 340×160×125 | 325×135×150 | |
Power supply dimensions | mm | 177×66×53 | 201×86×83 | 212×90×95 | 189×146×95 | 210×146×62 |
weight of power supply | KG | 1.27 | 1.0 | 2.45 | 2.35 | |
weight of ozone tube | KG | 0.91 | 1.35 | 1.9 | 4.3 |
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
What we do?
We Provide high-quality ozone generator for : Ozone generator wholesalers
Retailers and online shops
OEM-The custom-made ozone generator are available. Upon customer's idea,
drawings, photos etc.
ODM-The modification of the ozone generator after customer's selection is
accepted.
Excellent after-sales service:
1 year warranty again the manufacture defect, offer life time consultation on
problems occurred.
Report on the making process. Marketing feedbacks tracing.
.
