Adjustable Ozone Generator Parts Components Ceramic Ozone Generator Tube
Quick Detail

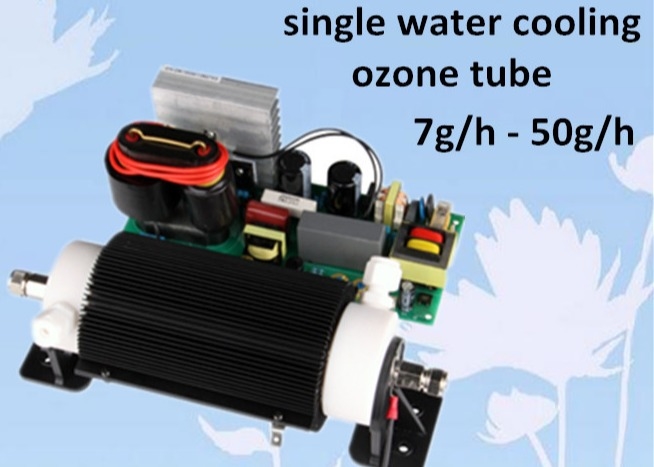

single water cooling ceramic ozone generator tube parts
1, Easy to maintain and install
2. air and water cooling ceramic tube
3, Low working voltage, high efficiency
Description
MOQ 1 sets
ozone produced medium ceramic
output 7g 15g 30g 50g
adjustable range 20%-100%
ozone produced method corona discharge
voltage 220V/ 50Hz or 110V/60Hz
warranty repair or change new parts during 12 months
Features:
1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration is around 40~70 mg/L, which is much higher than conventional products.
2. Domestic product -- got domestic in 2008.
A The internal electrode cooled by water, external electrode cooled by air (fan).
B The aluminum plate looks like sun flower which has larger cooling area, easy for heat dissipation.
C High technology—the thickness of ceramic tube is only 1.70 mm.
3. Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
It is 1/4 smaller than similar products with same capacity.
5.Easy to maintain and install
Specification
| Item | Unit | CH-PT | ||||
| 7GM | 7GA | 15GA | 30GA | 50GA | ||
| Ambient temperature | °C | 28 | 21.9 | 22 | 26 | |
| Oxygen feed flow rate | LPM | 1~3 | 3~5 | 7~9 | 15~18 | |
| Ozone concentration | Mg/L | 70-40 | 66.4~53 | 62~53 | 52~49 | |
| Ozone output | G/Hr | 4.2~7.2 | 11.9~15.9 | 26~28.6 | 46.8~52.9 | |
| Power (220V) | W | ≤100 | ≤100 | ≤190 | ≤300 | ≤500 |
| Cooling way | Air cooling for external electrode,water cooling for internal electrode | |||||
| Cooling water flow rate | LPM | >2 | ||||
| Diameter of cooling water pipe | mm | ED10 | ||||
| Temperature of cooling water | °C | Ambient temperature ±8°C | ||||
| Diameter of cooling fan | mm | 1pcs Dia.150 fan | 2pcs Dia.150 fan | |||
| Diameter of Gas inlet/outlet | mm | ED6 | ED8 | ED8 | ED8 | |
| Ozone output adjust range | % | / | 20-100 | 20-100 | ||
| Line power supply | V/Hz | 110/60 220/50 | ||||
| Ozone tube dimensions | mm | 200×100×105 | 260×100×105 | 340×160×125 | 325×135×150 | |
| Power supply dimensions | mm | 177×66×53 | 201×86×83 | 212×90×95 | 189×146×95 | 210×146×62 |
| weight of power supply | KG | 1.27 | 1.0 | 2.45 | 2.35 | |
| weight of ozone tube | KG | 0.91 | 1.35 | 1.9 | 4.3 | |
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
What we do?
We Provide high-quality ozone generator for : Ozone generator wholesalers
Retailers and online shops
OEM-The custom-made ozone generator are available. Upon customer's idea,
drawings, photos etc.
ODM-The modification of the ozone generator after customer's selection is
accepted.
Excellent after-sales service:
1 year warranty again the manufacture defect, offer life time consultation on
problems occurred.
Report on the making process. Marketing feedbacks tracing.
Our products are sold all over the world, you can rest assured.
