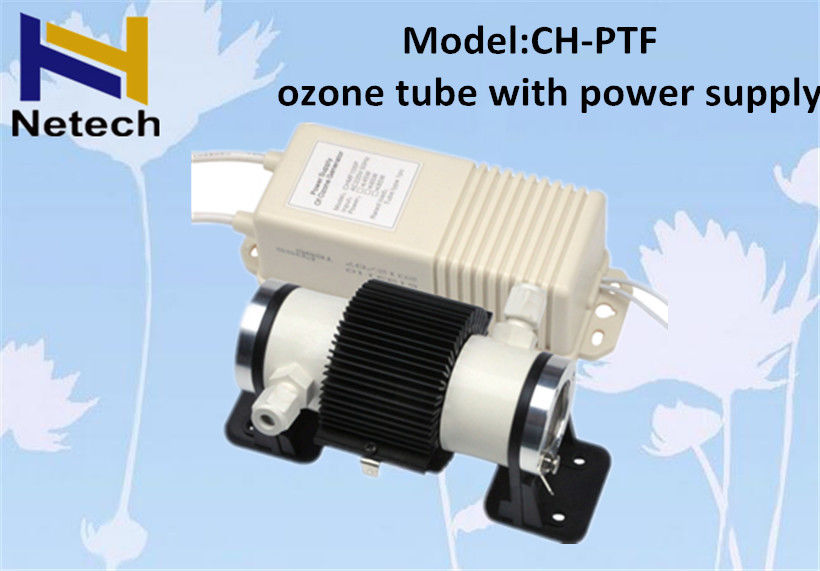

Ceramic Tube Ozonator Accessories With Power Supply / Air Cooling
Corrosion-resistant material: Imported material of high pure ceramic, SS 316L of internal electrode, connections which are best anti-oxidation material for ensuring several years running.
Features:
1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
2.Domestic product-got domestic in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
3.Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4.Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
Specifications:
CH-PTF1G ~3G
|
Item |
Unit |
CH-PTF |
||||
|
1G (12V) |
1G (220V) |
1G (110V) |
3GM |
3GA |
||
|
Ambient temperature |
℃ |
21.6 |
25 |
23.6 |
21 |
|
|
Ambient humidity |
% |
40 |
50 |
21.6 |
40 |
|
|
Power |
W |
≤14.4 |
≤15 |
≤15 |
≤50 |
≤80 |
|
Oxygen feed flow rate |
LPM |
0.3~0.5 |
0.3~1 |
0.3~1 |
0.5-1 |
|
|
Ozone concentration |
Mg/L |
49~40 |
49~30 |
49~30 |
81.6-49.2 |
|
|
Ozone output |
G/Hr |
0.88~1.2 |
0.88~1.8 |
2.4-2.95 |
||
|
Ozone output adjustable range |
% |
/ |
/ |
20~100 |
||
|
Line power supply |
V/Hz |
110/60 220/50 |
||||
|
Cooling way |
/ |
Air cooling |
||||
|
Diameter of cooling fan |
mm |
50*50 |
50*50 |
50*50 |
120 |
|
|
Diameter of gas inlet/outlet |
mm |
EDФ6 |
||||
|
Power supply dimensions |
mm |
105*57*50 |
96*47*32 |
96*47*32 |
153×60×53 |
201×86×83 |
|
ozone tube dimensions |
mm |
125*50*50 |
165×90*90 |
|||
|
Ozone tube weight |
Kg |
0.2 |
0.5 |
|||
|
Power supply weight |
Kg |
0.15 |
0.59 |
0.76 |
||
CH-PTF5G ~7G
|
Item |
Unit |
CH-PTF |
||||
|
5GM |
5GA |
6GM |
6GA |
7GA |
||
|
Ambient temperature |
℃ |
21 |
21 |
26 |
26 |
|
|
Ambient humidity |
% |
40 |
49 |
49 |
||
|
Power |
W |
≤65 |
≤80 |
≤80 |
≤85 |
≤95 |
|
Oxygen feed flow rate |
LPM |
0.5-2 |
1~3 |
1~3 |
||
|
Ozone concentration |
Mg/L |
72~48 |
64.6~36.7 |
70~41.2 |
||
|
Ozone output |
G/Hr |
2.16~4.76 |
3.9~6.6 |
4.20~7.4 |
||
|
Ozone output adjustable range |
% |
/ |
20~100 |
/ |
20~100 |
20~100 |
|
Line power supply |
V/Hz |
110/60 220/50 |
||||
|
Cooling way |
/ |
Air cooling |
||||
|
Diameter of cooling fan |
mm |
150 |
||||
|
Diameter of gas inlet/outlet |
mm |
EDФ6 |
||||
|
Power supply dimensions |
mm |
177*66*53 |
201*86*83 |
177*66*53 |
201*86*83 |
201*86*83 |
|
ozone tube dimensions |
mm |
185*90*90 |
200*90*90 |
212*90*90 |
||
|
Ozone tube weight |
Kg |
0.53 |
0.56 |
0.65 |
||
|
Power supply weight |
Kg |
0.59 |
0.76 |
0.59 |
0.76 |
1.1 |
What we do?
We Provide high-quality ozone generator for : Ozone generator wholesalers
Retailers and online shops
OEM-The custom-made ozone generator are available. Upon customer's idea,
drawings, photos etc.
ODM-The modification of the ozone generator after customer's selection is
accepted.
Excellent after-sales service:
1 year warranty again the manufacture defect, offer life time consultation on
problems occurred.
Report on the making process. Marketing feedbacks tracing.
We are the trusty partner! Buy base on the trust !
Our products are sold all over the world, you can rest assured.
