Quick Detail
ozone generator enamel tube parts
1. concentration up to 90%
2. 20%-100% adjustable range
3. domestic , Water cooling for internal & external electrodes
Description
1.ozone produced medium enamel
2.adjustable range 20%-100%
3.ozone produced method corona discharge
4.voltage 220V/ 50Hz or 110V/60Hz
5.cooling way internal & external water cooling
Electrodes:
Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless stee l external electrode, it produces high concentration ozone output. It uses insulation materials for connections, for preventing creepage.
Cooling way
Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.
Adjustable ozone output: 20-100%.
Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.

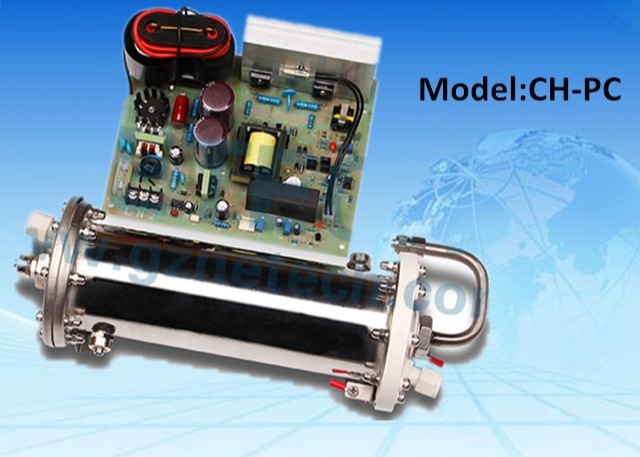

CH-PC 18-80G/Hr
Item |
Unit |
CH-PC18G |
CH-PC30G |
CH-PC40G |
CH-PC60G |
CH-PC80G |
Ambient temperature |
℃ |
23 |
23 |
23.9 |
23.9 |
24 |
Ambient humidity |
% |
38 |
38 |
37 |
||
Oxygen flow rate |
LPM |
1~4 |
2~8 |
3~10 |
5~17 |
8~20 |
Ozone concentration |
Mg/L |
112~78 |
123~72 |
123~70 |
120-72 |
118-74 |
Ozone output |
G/Hr |
6.7-18.7 |
14.8~34.6 |
22.1-42 |
36-73 |
56-88 |
Power |
Kw |
≤0.22 |
≤0.3 |
≤0.4 |
≤0.6 |
≤0.8 |
Cooling method |
Water cooling for internal & external electrodes |
|||||
Cooling water flow rate |
LPM |
≥2 |
||||
Cooling water temperature |
℃ |
ambient temperature ± 8℃ |
||||
Diameter of gas inlet/outlet |
mm |
1.Air inlet & ozone outlet: EDφ8mm |
||||
Diameter of water inlet/outlet |
|
EDφ10mm |
||||
Adjustable range |
% |
20-100 |
||||
Power supply |
V/Hz |
110/220V 60/50HZ |
||||
Fuse |
A |
3 |
5 |
10 |
||
Ozone tube dimension |
mm |
285*160*125 |
340*160*125 |
460*160*125 |
600*160*125 |
705*160*125 |
Power supply dimension |
mm |
212*90*95 |
189*146*95 |
210*146*62 |
||
Ozone tube weight |
Kg |
2.5 |
3 |
3.6 |
4.9 |
5.45 |
Power supply weight |
Kg |
1 |
2.4 |
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
What we do?
We Provide high-quality ozone generator for : Ozone generator wholesalers
Retailers and online shops
OEM-The custom-made ozone generator are available. Upon customer's idea,
drawings, photos etc.
ODM-The modification of the ozone generator after customer's selection is
accepted.
