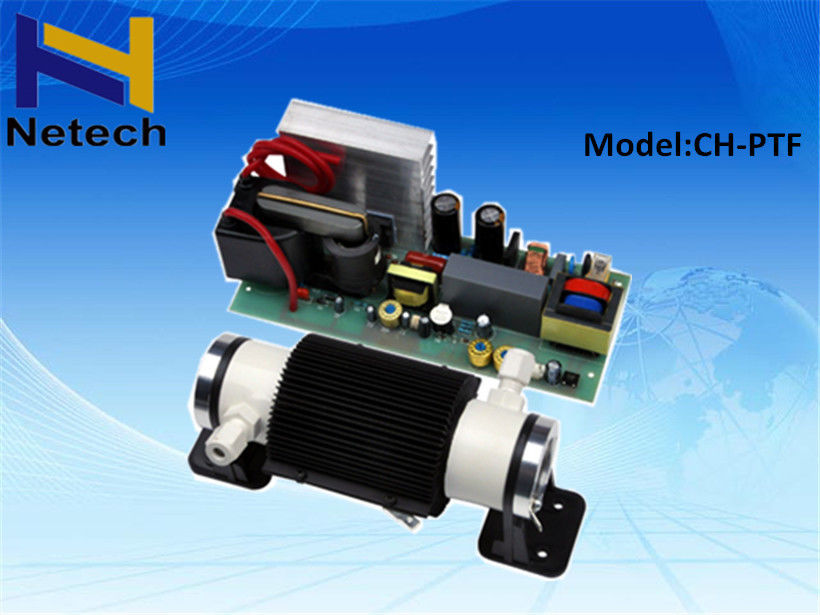

Corona Discharge Ceramic Ozone Tube Electric Power For cleanion
Quick Detail
ozone generator spare parts
1. Easy to maintain and install
2. air cooling by cooled fan
3, Low working voltage,high concentration
Description
MOQ 1 sets
ozone produced medium ceramic
output 1g 3g 5g 6g 7g
cooling way air cooling
adjustable range 20%-100%
ozone produced method corona discharge
voltage 220V/ 50Hz or 110V/60Hz
warranty repair or change new parts during 12 months
Features
Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around 28~65 Mg/L, which is much higher than conventional <products
Dometic product-got domestic in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, <high efficiency and stable ozone output.
It saves space effectively. The size is 1/4 smaller than similar products.
CH-PTF1G ~3G
| Item | Unit | CH-PTF | ||||
| 1G (12V) | 1G (220V) | 1G (110V) | 3GM | 3GA | ||
| Ambient temperature | ℃ | 21.6 | 25 | 23.6 | 21 | |
| Ambient humidity | % | 40 | 50 | 21.6 | 40 | |
| Power | W | ≤14.4 | ≤15 | ≤15 | ≤50 | ≤80 |
| Oxygen feed flow rate | LPM | 0.3~0.5 | 0.3~1 | 0.3~1 | 0.5-1 | |
| Ozone concentration | Mg/L | 49~40 | 49~30 | 49~30 | 81.6-49.2 | |
| Ozone output | G/Hr | 0.88~1.2 | 0.88~1.8 | 2.4-2.95 | ||
| Ozone output adjustable range | % | / | / | 20~100 | ||
| Line power supply | V/Hz | 110/60 220/50 | ||||
| Cooling way | / | Air cooling | ||||
| Diameter of cooling fan | mm | 50*50 | 50*50 | 50*50 | 120 | |
| Diameter of gas inlet/outlet | mm | EDФ6 | ||||
| Power supply dimensions | mm | 105*57*50 | 96*47*32 | 96*47*32 | 153×60×53 | 201×86×83 |
| ozone tube dimensions | mm | 125*50*50 | 165×90*90 | |||
| Ozone tube weight | Kg | 0.2 | 0.5 | |||
| Power supply weight | Kg | 0.15 | 0.59 | 0.76 | ||
CH-PTF5G ~7G
| Item | Unit | CH-PTF | ||||
| 5GM | 5GA | 6GM | 6GA | 7GA | ||
| Ambient temperature | ℃ | 21 | 21 | 26 | 26 | |
| Ambient humidity | % | 40 | 49 | 49 | ||
| Power | W | ≤65 | ≤80 | ≤80 | ≤85 | ≤95 |
| Oxygen feed flow rate | LPM | 0.5-2 | 1~3 | 1~3 | ||
| Ozone concentration | Mg/L | 72~48 | 64.6~36.7 | 70~41.2 | ||
| Ozone output | G/Hr | 2.16~4.76 | 3.9~6.6 | 4.20~7.4 | ||
| Ozone output adjustable range | % | / | 20~100 | / | 20~100 | 20~100 |
| Line power supply | V/Hz | 110/60 220/50 | ||||
| Cooling way | / | Air cooling | ||||
| Diameter of cooling fan | mm | 150 | ||||
| Diameter of gas inlet/outlet | mm | EDФ6 | ||||
| Power supply dimensions | mm | 177*66*53 | 201*86*83 | 177*66*53 | 201*86*83 | 201*86*83 |
| ozone tube dimensions | mm | 185*90*90 | 200*90*90 | 212*90*90 | ||
| Ozone tube weight | Kg | 0.53 | 0.56 | 0.65 | ||
| Power supply weight | Kg | 0.59 | 0.76 | 0.59 | 0.76 | 1.1 |
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
Our products are sold all over the world, you can rest assured.
