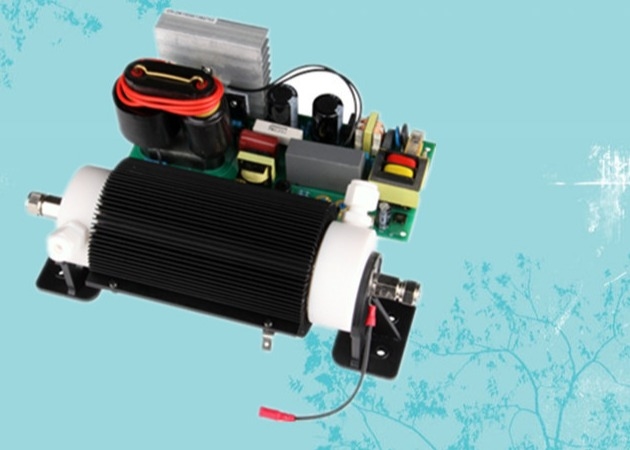

Ceramic tube 50G/H Ozone Generator Kits / ozone generator cell
Quick Detail
water cooling ceramic tube
1, Easy to maintain and install
2. air cooling ceramic tube
3, Low working voltage,high efficiency
Description
MOQ 1 sets
ozone produced medium ceramic
output 7g 15g 30g 50g
cooling way water cooling
adjustable range 20%-100%
ozone produced method corona discharge
voltage 220V/ 50Hz or 110V/60Hz
Features:
1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration is around 40~70 mg/L, which is much higher than conventional products.
2. Domestic product -- got domestic in 2008.
A The internal electrode cooled by water, external electrode cooled by air (fan).
B The aluminum plate looks like sun flower which has larger cooling area, easy for heat dissipation.
C High technology—the thickness of ceramic tube is only 1.70 mm.
3. Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
It is 1/4 smaller than similar products with same capacity.
5.Easy to maintain and install
Specifications:
Item | Unit | CH-PT | ||||
7GM | 7GA | 15GA | 30GA | 50GA | ||
Ambient temperature | ℃ | 28 | 21.9 | 22 | 26 | |
Ambient humidity | % | 37 | 39 | 38 | 44 | |
Oxygen feed flow rate | LPM | 1~3 | 3~5 | 7~9 | 15~18 | |
Ozone concentration | Mg/L | 70-40 | 66.4~53 | 62~53 | 52~49 | |
Ozone output | G/Hr | 4.2~7.2 | 11.9~15.9 | 26~28.6 | 46.8~52.9 | |
Power (220V) | W | ≤100 | ≤100 | ≤190 | ≤300 | ≤500 |
Current +_10% | A | 0.45 | 0.86 | 1.4 | 1.9 | |
Cooling way | Air cooling for external electrode,water cooling for internal electrode | |||||
Cooling water flow rate | LPM | >2 | ||||
Diameter of cooling water pipe | mm | EDФ10 | ||||
Temperature of cooling water | ℃ | Ambient temperature ±8℃ | ||||
Diameter of cooling fan | mm | 1pcs Dia.150 fan | 2pcs Dia.150 fan | |||
Diameter of Gas inlet/outlet | mm | EDФ6 | EDФ6 | EDФ6 | EDФ8 | EDФ8 |
Ozone output adjust range | % | / | 20-100 | 20-100 | ||
Line power supply | V/Hz | 110/60 220/50 | ||||
Ozone tube dimensions | mm | 200×100×105 | 260×100×105 | 300×140×150 | 325×140×150 | |
Power supply dimensions | mm | 177×66×53 | 201×86×83 | 125×100×95 | 210×146×60 | 210×146×60 |
weight of power supply | KG | 0.73 | 0.66 | 1.0 | 0.62+2 | 0.62+2 |
weight of ozone tube | KG | 1.12 | 1.38 | 3.76 | 4.2 |
