Ceramic Ozone Generator Tube / Water Ozone Generator Corona Discharge Tube
-
High Light
ceramic ozone tube
,ozone generator tube
-
Ozone Generating WayCorona Discharge
-
Ozone Output Control20-100%
-
MaterialCeramic
-
Ozone Output1g 3g 5g 6g 7g
-
Cooling WayAir Cooling
-
Voltage12V / 110V / 220V
-
Place of OriginGuangdong China
-
Brand NameNetech
-
Model NumberCH - PTF
-
Minimum Order Quantity1 set
-
PriceFor further discussion
-
Packaging DetailsSafe double carton package with foam inside for protection
-
Delivery Time2-3 working days after payment confirmed
-
Payment TermsL/C D/A D/P T/T Western Union Credit Card/ Paypal
-
Supply Ability3000 sets per month
Ceramic Ozone Generator Tube / Water Ozone Generator Corona Discharge Tube

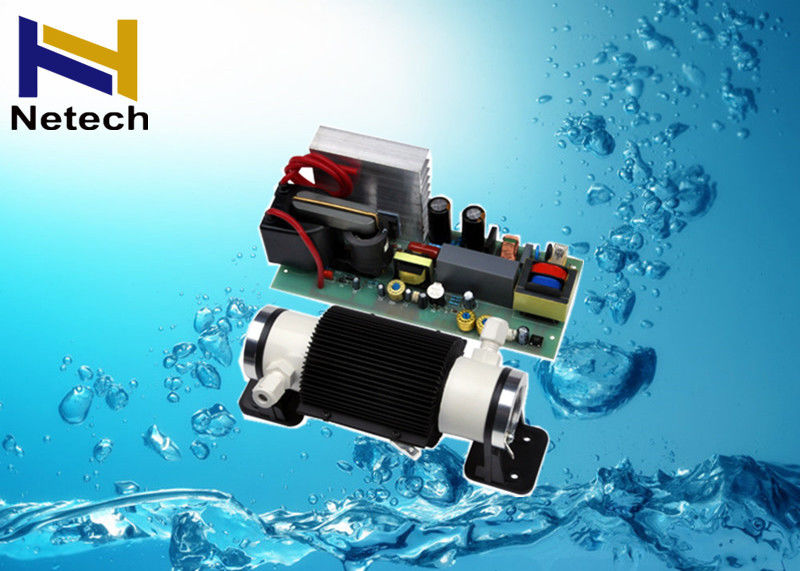

Ceramic Ozone Generator Tube With Power Supply 5g/h 7g/h 110V
Descriptions:
Imported material of high pure ceramic, SS 316L of internal electrode, connections which are best anti-oxidation material for ensuring several years running.
Features:
1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
2.Domestic product-got domestic in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
3.Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4.Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
Specifications:
CH-PTF1G ~3G
|
Item |
Unit |
CH-PTF |
||||
|
1G (12V) |
1G (220V) |
1G (110V) |
3GM |
3GA |
||
|
Ambient temperature |
℃ |
21.6 |
25 |
23.6 |
21 |
|
|
Ambient humidity |
% |
40 |
50 |
21.6 |
40 |
|
|
Power |
W |
≤14.4 |
≤15 |
≤15 |
≤50 |
≤80 |
|
Oxygen feed flow rate |
LPM |
0.3~0.5 |
0.3~1 |
0.3~1 |
0.5-1 |
|
|
Ozone concentration |
Mg/L |
49~40 |
49~30 |
49~30 |
81.6-49.2 |
|
|
Ozone output |
G/Hr |
0.88~1.2 |
0.88~1.8 |
2.4-2.95 |
||
|
Ozone output adjustable range |
% |
/ |
/ |
20~100 |
||
|
Line power supply |
V/Hz |
110/60 220/50 |
||||
|
Cooling way |
/ |
Air cooling |
||||
|
Diameter of cooling fan |
mm |
50*50 |
50*50 |
50*50 |
120 |
|
|
Diameter of gas inlet/outlet |
mm |
EDФ6 |
||||
|
Power supply dimensions |
mm |
105*57*50 |
96*47*32 |
96*47*32 |
153×60×53 |
201×86×83 |
|
ozone tube dimensions |
mm |
125*50*50 |
165×90*90 |
|||
|
Ozone tube weight |
Kg |
0.2 |
0.5 |
|||
|
Power supply weight |
Kg |
0.15 |
0.59 |
0.76 |
||
CH-PTF5G ~7G
|
Item |
Unit |
CH-PTF |
||||
|
5GM |
5GA |
6GM |
6GA |
7GA |
||
|
Ambient temperature |
℃ |
21 |
21 |
26 |
26 |
|
|
Ambient humidity |
% |
40 |
49 |
49 |
||
|
Power |
W |
≤65 |
≤80 |
≤80 |
≤85 |
≤95 |
|
Oxygen feed flow rate |
LPM |
0.5-2 |
1~3 |
1~3 |
||
|
Ozone concentration |
Mg/L |
72~48 |
64.6~36.7 |
70~41.2 |
||
|
Ozone output |
G/Hr |
2.16~4.76 |
3.9~6.6 |
4.20~7.4 |
||
|
Ozone output adjustable range |
% |
/ |
20~100 |
/ |
20~100 |
20~100 |
|
Line power supply |
V/Hz |
110/60 220/50 |
||||
|
Cooling way |
/ |
Air cooling |
||||
|
Diameter of cooling fan |
mm |
150 |
||||
|
Diameter of gas inlet/outlet |
mm |
EDФ6 |
||||
|
Power supply dimensions |
mm |
177*66*53 |
201*86*83 |
177*66*53 |
201*86*83 |
201*86*83 |
|
ozone tube dimensions |
mm |
185*90*90 |
200*90*90 |
212*90*90 |
||
|
Ozone tube weight |
Kg |
0.53 |
0.56 |
0.65 |
||
|
Power supply weight |
Kg |
0.59 |
0.76 |
0.59 |
0.76 |
1.1 |
QUALITY CONTROL
In order to ensure the best quality , every ozone generator has been strictly tested before delivery.
We promise the good performance and all parts completely according to you
Why choosing us?
1.Having 10 years production experienced .We are trusty business partner.·
2.Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product. ·
3.CH-PTF Production Capacity: 3000 sets per month. ·
4.We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.·
5.We supply OEM service according to customers' requests and give out professional suggestions.
Distributors Offer : Welcome to be our distributor.
We are the trusty partner! Buy base on the trust !
Our products are sold all over the world, you can rest assured.
