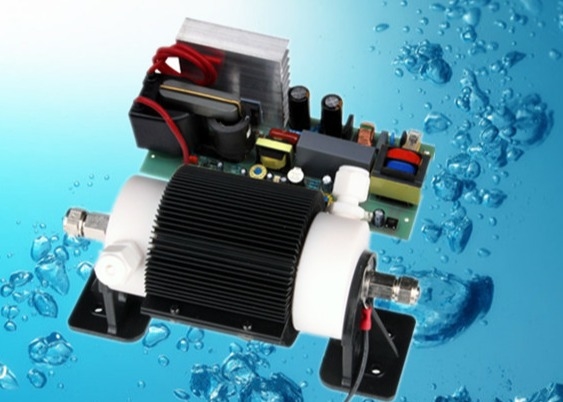

15g/h - 50g/h Ozone Generator Parts Water Cooling Ceramic Ozone Tube With Ozone Transform
-
High Light
ozone accessories
,ozone generator tube
-
TypeOzone Water Purifier
-
MOQ1 Set
-
Adjustable Range20%-100%
-
Cooling WayWater Cooling
-
MaterialCeramic Tube
-
Ozone Output7G /15G /30G /50 G/Hr
-
Place of OriginGuangdong China
-
Brand NameNetech
-
Model NumberCH-PT
-
Minimum Order Quantity1 Set
-
PriceFor further discussion
-
Packaging DetailsSafe double carton package with foam inside for protection
-
Delivery Time2 -3 working days after payment confirmed
-
Payment TermsWestern Union, L/C, T/T,Paypal
-
Supply Ability3000 sets per month
15g/h - 50g/h Ozone Generator Parts Water Cooling Ceramic Ozone Tube With Ozone Transform
Description
MOQ 1 sets
ozone produced medium ceramic material
output 7g 15g 30g 50g
cooling way water cooled
adjustable range 20%-100%
ozone produced method corona discharge technology
voltage 220V/ 50Hz or 110V/60Hz
Features:
1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration is around 40~70 mg/L, which is much higher than conventional products.
2. Domestic product -- got domestic in 2008.
A The internal electrode cooled by water, external electrode cooled by air (fan).
B The aluminum plate looks like sun flower which has larger cooling area, easy for heat dissipation.
3. Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
It is 1/4 smaller than similar products with same capacity
Specification
| Item | Unit | CH-PT | ||||
| 7GM | 7GA | 15GA | 30GA | 50GA | ||
| Ambient temperature | °C | 28 | 21.9 | 22 | 26 | |
| Oxygen feed flow rate | LPM | 1~3 | 3~5 | 7~9 | 15~18 | |
| Ozone concentration | Mg/L | 70-40 | 66.4~53 | 62~53 | 52~49 | |
| Ozone output | G/Hr | 4.2~7.2 | 11.9~15.9 | 26~28.6 | 46.8~52.9 | |
| Power (220V) | W | ≤100 | ≤100 | ≤190 | ≤300 | ≤500 |
| Cooling way | Air cooling for external electrode,water cooling for internal electrode | |||||
| Cooling water flow rate | LPM | >2 | ||||
| Diameter of cooling water pipe | mm | ED10 | ||||
| Temperature of cooling water | °C | Ambient temperature ±8°C | ||||
| Diameter of cooling fan | mm | 1pcs Dia.150 fan | 2pcs Dia.150 fan | |||
| Diameter of Gas inlet/outlet | mm | ED6 | ED8 | ED8 | ED8 | |
| Ozone output adjust range | % | / | 20-100 | 20-100 | ||
| Line power supply | V/Hz | 110/60 220/50 | ||||
| Ozone tube dimensions | mm | 200×100×105 | 260×100×105 | 340×160×125 | 325×135×150 | |
| Power supply dimensions | mm | 177×66×53 | 201×86×83 | 212×90×95 | 189×146×95 | 210×146×62 |
| weight of power supply | KG | 1.27 | 1.0 | 2.45 | 2.35 | |
| weight of ozone tube | KG | 0.91 | 1.35 | 1.9 | 4.3 | |
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should bear the shipping costs for return.
Why choosing us?
>> Having 10 years production experienced .We are trusty business partner.·
>> Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product. ·
>> NT-PT Production Capacity: 3000 pcs per month. ·
>> We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.·
>> We supply OEM service according to customers' requests and give out professional suggestions.
Distributors Offer : Welcome to be our distributor
Our products are sold all over the world, you can rest assured.
