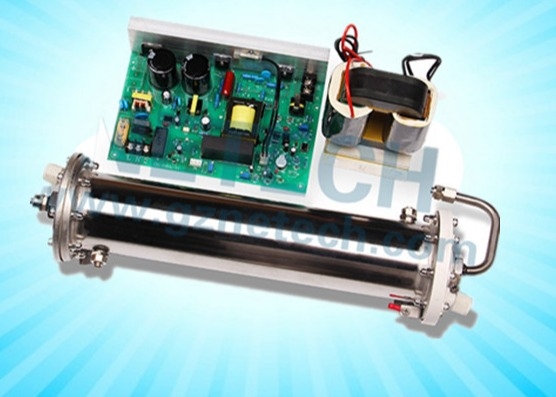

Accuracy Control Water Cooled Enamel Ozone Tube With Card 110V In Pools
-
High Light
ozone accessories
,ceramic ozone tube
-
UseOzone Assembly Parts
-
Cooling WayInternal & External Water Cooling
-
Voltage220V/ 50Hz Or 110V/60Hz
-
Adjustable Range20%-100%
-
MOQOne Set
-
Ozone Capacity18g,30g,40g,60g,80g
-
Place of OriginChina
-
Brand NameNetech
-
Model NumberCH-PC
-
Minimum Order Quantity1 set
-
PriceFor further discussion
-
Packaging DetailsSafe double carton package with foam inside for protection
-
Delivery Time2 to 3 working days after the payment confirmed
-
Payment Termspaypal,western union,T/T,credit card
-
Supply Ability1000 per weeks
Accuracy Control Water Cooled Enamel Ozone Tube With Card 110V In Pools
18g 30g 60g 80g Water Cooled Enamel Ozone Tube With Card 110V In Pools
1.Quick Detail:
ozone generator spare parts
1. concentration up to 90%
2. 20%-100% adjustable range
3. water cooling
2. Description:
Electrodes:
Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless steel external electrode, it produces high concentration ozone output. It uses insulation materials for connections, for preventing creepage.
Cooling way
Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.
Adjustable ozone output: 20-100%.
Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.
3.Specification:
| Item | Unit | CH-PC10G | CH-PC20G | CH-PC30G | CH-PC50G | CH-PC60G |
| Oxygen flow rate | LPM | 1-3 | 2-6 | 3-10 | 5-15 | 8-18 |
| Ozone concentration | Mg/L | 88-58 | 88.6-57 | 87.5-56.8 | 90-56 | 90-60 |
| Ozone output | G/Hr | 5.28-10.44 | 10.63-20.52 | 15.75-34.08 | 27-50.40 | 43.2-64.80 |
| Power | Kw | 0.2 | 0.28 | 0.38 | 0.55 | 0.75 |
| Output frequency | KHz | 2.4 | ||||
| High voltage output | V | 2800 | ||||
| Cooling method | Water cooling for internal & external electrodes | |||||
| Cooling water flow rate | LPM | 30 | 48 | |||
| Cooling water temperature | °C | 35 | ||||
| Fitting size | mm | 1.Air inlet & ozone outlet: EDφ8mm 2.Cooling water: EDφ10mm | ||||
| Adjustable range | % | 20-100 | ||||
| Power supply | V/Hz | 110/220V 50/60HZ | ||||
| Fuse | A | 3 | 5 | 10 | ||
| Ozone tube dimension | mm | 250×105×125 | 310×105×125 | 430×105×125 | 575×105×125 | 778×105×125 |
| Mounting hole foot print of ozone tube | mm | 127×44(φ5) | 195×44(φ5) | 320×44(φ5) | 450×44(φ5) | 555×44(φ5) |
| Power supply dimension | mm | 200×100×85 | 190×150×85 | 210×150×80 | ||
| Mounting hole foot print of power supply | mm | 155×127 | 155×127 | 192×177 | 192×177 | 243×208 |
| Ozone tube weight | Kg | 2.50 | 3.00 | 3.60 | 4.90 | 5.45 |
| Power supply weight | Kg | 1 | 2.40 | |||
4.Why choosing us?
· Having 11 years production experienced .We are trusty business partner.
· Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.
· CH-PC Production Capacity: 3000 pcs per month.
· We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
· We supply OEM service according to customers' requests and give out professional suggestions.
>>>>>Distributors Offer : Welcome to be our distributor
Our products are sold all over the world, you can rest assured.
