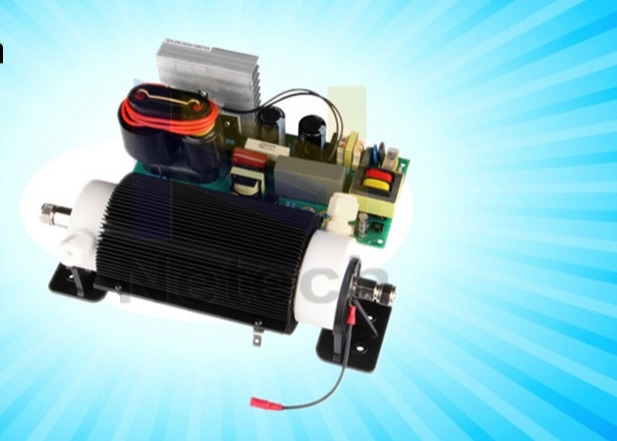

110V Ozone Generator Parts In Water Ozone Treatment O3 Machine 7g/h - 50g/h ISO

110V Ozone Generator Parts In Water Ozone Treatment O3 Machine 7g/h - 50g/h ISO

  • High Light

    ozone accessories

    ,

    ceramic ozone tube

  • Cooling Way
    Air Cooling And Water Cooling
  • Ozone Output
    7g,15g,30g,50g
  • MOQ
    One Set
  • Material
    High Pure Ceramic
  • Ozone Produced Method
    Corona Discharge
  • Warranty
    12 Months
  • Place of Origin
    China
  • Brand Name
    Netech
  • Model Number
    CH-PT
  • Minimum Order Quantity
    1 set
  • Price
    For further discussion
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    2 to 3 working days after the payment confirmed
  • Payment Terms
    paypal,western union,T/T,credit card, L/C
  • Supply Ability
    3000 sets per months

110V Ozone Generator Parts In Water Ozone Treatment O3 Machine 7g/h - 50g/h ISO

110V Ozone Generator Parts In Water Ozone Treatment O3 Machine 7g/h - 50g/h



Ozone tube -Netech.pdf





1.Description:

MOQ                                              1 set

output                                             7g 15g 30g 50g

cooling way                                     air and water cooling

adjustable range                             20%-100%

ozone produced method                 corona discharge

voltage                                            220V/ 50Hz or 110V/60Hz





2.Features:

1). Extremely low rate of ozone decay.

Ozone concentration is around 40~70 mg/L, which is much higher than conventional products.



2). Domestic product -- got domestic in 2008.

A The internal electrode cooled by water, external electrode cooled by air (fan).

B The aluminum plate looks like sun flower which has larger cooling area, easy for heat dissipation.

C High technology—the thickness of ceramic tube is only 1.70 mm.



3). Low working voltage

The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.



4). Small in size.

It is 1/4 smaller than similar products with same capacity.



3.Specifications:



Item Unit CH-PT
7GM 7GA 15GA 30GA 50GA
Ambient temperature 28 21.9 22 26
Ambient humidity % 37 39 38 44
Oxygen feed flow rate LPM 1~3 3~5 7~9 15~18
Ozone concentration Mg/L 70-40 66.4~53 62~53 52~49
Ozone output G/Hr 4.2~7.2 11.9~15.9 26~28.6 46.8~52.9
Power (220V) W ≤100 ≤100 ≤190 ≤300 ≤500
Current +_10% A 0.45 0.86 1.4 1.9
Cooling way   Air cooling for external electrode,water cooling for internal electrode
Cooling water flow rate LPM >2
Diameter of cooling water pipe mm EDФ10
Temperature of cooling water Ambient temperature ±8℃
Diameter of cooling fan mm 1pcs Dia.150 fan 2pcs Dia.150 fan
Diameter of Gas inlet/outlet mm EDФ6 EDФ6 EDФ6 EDФ8 EDФ8
Ozone output adjust range % / 20-100 20-100
Line power supply V/Hz 110/60 220/50
Ozone tube dimensions mm 200×100×105 260×100×105 300×140×150 325×140×150
Power supply dimensions mm 177×66×53 201×86×83 125×100×95 210×146×60 210×146×60
weight of power supply KG 0.73 0.66 1.0 0.62+2 0.62+2
weight of ozone tube KG 1.12 1.38 3.76 4.2



Why choosing us?



1.Having 10 years production experienced .We are trusty business partner.

2.Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.

3.CH-PT Production Capacity: 3000 pcs per month.

4.We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.

5.We supply OEM service according to customers' requests and give out professional suggestions.



Distributors Offer : Welcome to be our distributor
