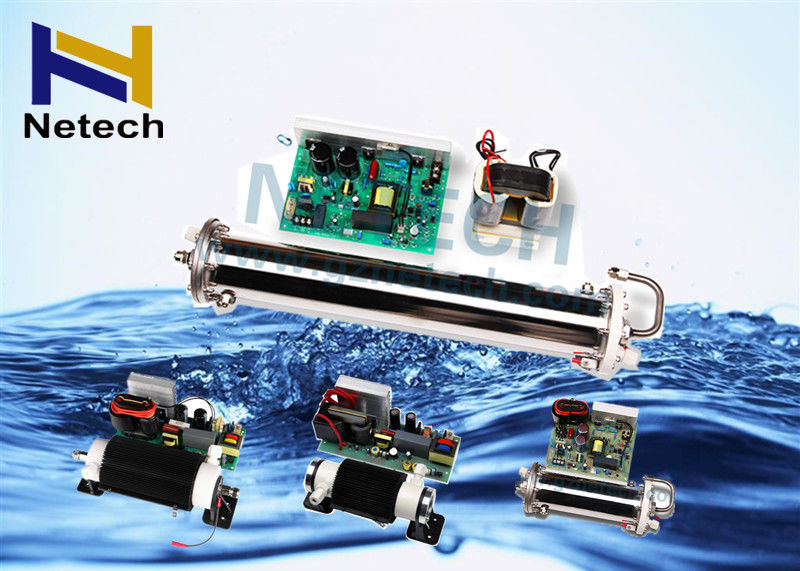

110V Ozone Water cleanr Ozone Tube With Transformer 18g/H - 80g/H

110V Ozone Water cleanr Ozone Tube With Transformer 18g/H - 80g/H

Products - Ozone Generator Parts
  • High Light

    ceramic ozone tube

    ,

    ozone generator tube

  • Usage
    For Air Cleaning,water Clean,etc.
  • Cooling Way
    Internal & External Water Cooling
  • Voltage
    220V/ 50Hz Or 110V/60Hz
  • Adjustable Range
    20%-100%
  • MOQ
    One Set
  • Ozone Capacity
    18g,30g,40g,60g,80g
  • Place of Origin
    China
  • Brand Name
    Netech
  • Model Number
    NT-PC / CH-PC
  • Minimum Order Quantity
    1 set
  • Price
    For further discussion
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    2 to 3 working days after the payment confirmed
  • Payment Terms
    paypal,western union,T/T,credit card
  • Supply Ability
    1000 per weeks

110V Ozone Water cleanr Ozone Tube With Transformer 18g/H - 80g/H

  • 110V Ozone Water cleanr Ozone Tube With Transformer 18g/H - 80g/H
  • 110V Ozone Water cleanr Ozone Tube With Transformer 18g/H - 80g/H
  • 110V Ozone Water cleanr Ozone Tube With Transformer 18g/H - 80g/H
Get Price Contact Now

18g/h - 80g/h 110V Ozone Tube With Transformer In Ozone Water cleanr




Quick Detail

MOQ 1 set

adjustable range 20%-100%

ozone produced method: corona discharge

voltage 220V/ 50Hz or 110V/60Hz

Cooled method: cooling way internal & external water cooling





Fetures:



1. Electrodes:

Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless steel external electrode, it produces high concentration ozone output. It uses insulation materials for connections, for preventing creepage.



2. Cooling way

Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.



3. Adjustable ozone output: 20-100%.

Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.





Specification:

Item Unit CH-PC18G CH-PC30G CH-PC40G CH-PC60G CH-PC80G
Ambient temperature ℃ 23 23 23.9 23.9 24
Ambient humidity % 38 38 37
Oxygen flow rate LPM 1~4 2~8 3~10 5~17 8~20
Ozone concentration Mg/L 112~78 123~72 123~70 120-72 118-74
Ozone output G/Hr 6.7-18.7 14.8~34.6 22.1-42 36-73 56-88
Power Kw ≤0.22 ≤0.3 ≤0.4 ≤0.6 ≤0.8
Cooling method Water cooling for internal & external electrodes
Cooling water flow rate LPM ≥2
Cooling water temperature ℃ ambient temperature ± 8℃
Diameter of gas inlet/outlet mm 1.Air inlet & ozone outlet: EDφ8mm
Diameter of water inlet/outlet 　 EDφ10mm
Adjustable range % 20-100
Power supply V/Hz 110/220V 60/50HZ
Fuse A 3 5 10
Ozone tube dimension mm 285*160*125 340*160*125 460*160*125 600*160*125 705*160*125
Power supply dimension mm 212*90*95 189*146*95 210*146*62
Ozone tube weight Kg 2.5 3 3.6 4.9 5.45
Power supply weight Kg 1 2.4





About Netech:

1. We are OEM and ODM manufactory,which has passed ISO certification.

2. We own our core technology, large sales teams, strong R&D team and standardized production workshop.

3. Have strong competitive advantages on quality and price.

4. Our R & D team always leads ozone technical reform and innovation.

5. Our markets extend to all over the world.



>>>>>Distributors Offer : Welcome to be our distributor
