High Performance Ozone Generator Parts / Ozone Generator Transformer For Water Tanks

High Performance Ozone Generator Parts / Ozone Generator Transformer For Water Tanks

    • High Performance Ozone Generator Parts / Ozone Generator Transformer For Water Tanks
    • High Performance Ozone Generator Parts / Ozone Generator Transformer For Water Tanks
  • High Performance Ozone Generator Parts / Ozone Generator Transformer For Water Tanks

    Product Details:

    Place of Origin: China
    Brand Name: Netech
    Model Number: CH-PC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: For further discussion
    Packaging Details: Safe double carton package with foam inside for protection
    Delivery Time: 2 to 3 working days after the payment confirmed
    Payment Terms: paypal,western union,T/T,credit card
    Supply Ability: 1000 per weeks
    Contact Now
    Detailed Product Description
    Type: Ozone Assembly Parts Cooling Way: Internal & External Water Cooling
    Voltage: 220V/110V Adjustable Range: 20%-100%
    MOQ: One Set Ozone Capacity: 18g,30g,40g,60g,80g
    Product: Ozone Tube With Power Supply
    High Light:

    ozone accessories

    ,

    ceramic ozone tube

    Water Cooled Ozone Generator Transformer Ac 110v 220v For Water Tanks 60g 80g




    Quick Detail



    MOQ 1 set

    Adjustable range 20%-100%

    ozone produced method corona discharge

    voltage 220V/ 50Hz or 110V/60Hz

    cooling way internal & external water cooling



     Electrodes:

    Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material.



    Cooling way

    Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.And it will be better to use the 3m extend pipe also.



    Adjustable ozone output: 20-100%.

    Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.



    Specification:



    Item Unit CH-PC10G CH-PC20G CH-PC30G CH-PC50G CH-PC60G
    Oxygen flow rate LPM 1-3 2-6 3-10 5-15 8-18
    Ozone concentration Mg/L 88-58 88.6-57 87.5-56.8 90-56 90-60
    Ozone output G/Hr 5.28-10.44 10.63-20.52 15.75-34.08 27-50.40 43.2-64.80
    Power Kw 0.2 0.28 0.38 0.55 0.75
    Output frequency KHz 2.4
    High voltage output V 2800
    Cooling method Water cooling for internal & external electrodes
    Cooling water flow rate LPM 30 48
    Cooling water temperature °C 35
    Fitting size mm 1.Air inlet & ozone outlet: EDφ8mm 2.Cooling water: EDφ10mm
    Adjustable range % 20-100
    Power supply V/Hz 110/220V 50/60HZ
    Fuse A 3 5 10
    Ozone tube dimension mm 250×105×125 310×105×125 430×105×125 575×105×125 778×105×125
    Mounting hole foot print of ozone tube mm 127×44(φ5) 195×44(φ5) 320×44(φ5) 450×44(φ5) 555×44(φ5)
    Power supply dimension mm 200×100×85 190×150×85 210×150×80
    Mounting hole foot print of power supply mm 155×127 155×127 192×177 192×177 243×208
    Ozone tube weight Kg 2.50 3.00 3.60 4.90 5.45
    Power supply weight Kg 1 2.40





    Function of ozone:


    1. Aquaculture, Aquarium, Fish farming Water treatment
    2. Swimming pools Water treatment
    3. Sewage water treatment
    4. Various Water cleaniont clean
    5. Car Air purification and clean
    6. Food cleanion,household air and water purifier
    7. Ozone generator for kitchen exhaust,poultry farm, laundry , water tanks , hospitals

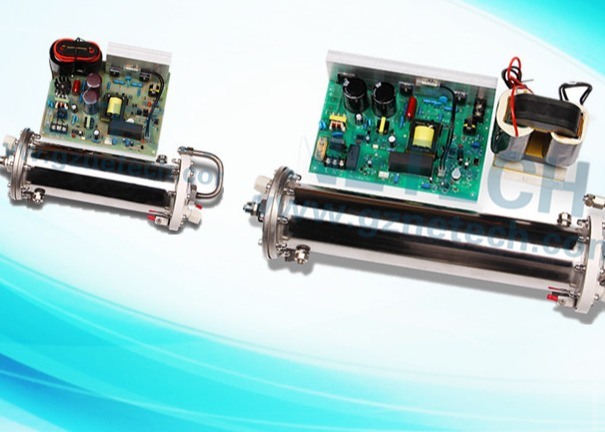

    Other types of ozone tube:

    High Performance Ozone Generator Parts / Ozone Generator Transformer For Water Tanks 0

    High Performance Ozone Generator Parts / Ozone Generator Transformer For Water Tanks 1



    Why choosing us?



    · Having 10 years production experienced .We are trusty business partner.



    · Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.



    · CH-PC Production Capacity: 3000 pcs per month.



    · We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.



    · We supply OEM service according to customers' requests and give out professional suggestions.
