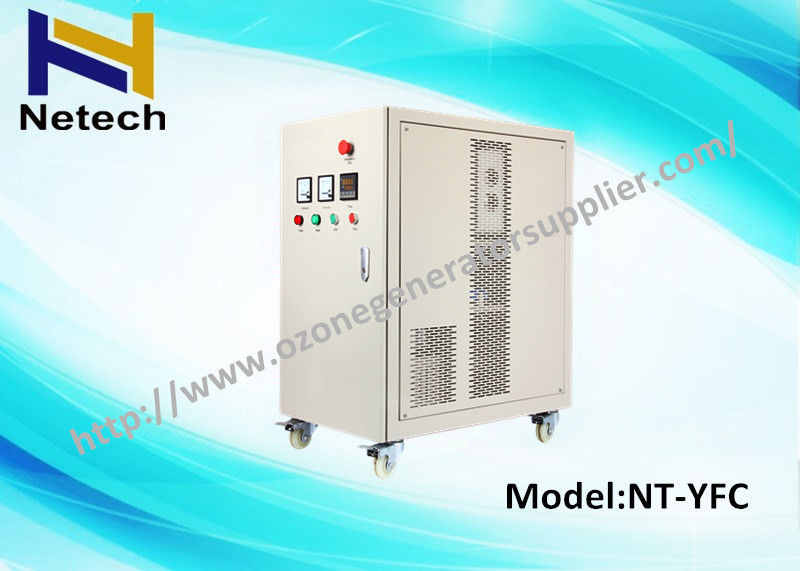

Air Cooled Ozone Generator Water Purification For Cleaning Ozone cleanr Machine 30g

Air Cooled Ozone Generator Water Purification For Cleaning Ozone cleanr Machine 30g

  • High Light

    water treatment ozone generator

    ,

    ozone generator wastewater treatment

  • Gas Source
    PSA Oxygen Source
  • Cooled Way
    Air Cooled
  • Guarantee
    12 Months
  • Ozone Capacity
    5g / 10g / 15g / 20g / 30g
  • MOQ
    One Unit
  • Core Parts
    Air Cooling Ozone Tube
  • Place of Origin
    Guangdong China
  • Brand Name
    Netech
  • Model Number
    NT-YFC
  • Minimum Order Quantity
    One unit
  • Price
    for futher discussion
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    5-10 days after payment confirmed
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    1500 sets per month

Air Cooled Ozone Generator Water Purification For Cleaning Ozone cleanr Machine 30g

Ozone Generator Water Purification For Cleaning Ozone cleanr Machine 30g




Description:



Gas source Oxygen
Oxygen flow rate 3-10LPM
Material Ceramic tube
Cooling Air cooling
Power supply 220V  50HZ
Commodity Ozone air / water purifier system
Ozone output 5g / 10g / 15g / 20g / 30g










Features:

1. Carbon steel sprayed with plastic housing;
2. Use PSA high purity twelve tower oxygen sieve as gas feed;
3. Use of product –Air cooling Ceramic ozone tube with high frequency electric board, high ozone concentration and stable ozone capacity, long life time;
4. Use Oil-free air compressor;
5. It has Air dryer and filters. To supply cool, dry, clean air source for air compressor and PSA oxygen concentrator;

Control panel:
Voltmeter, Ampere meter, Timer, Ozone Ampere meter, Main switch, Power supply switch, Emergency stop, working light, Power light, Alarm

Control protection:


Over current protection,Electric leakage protection, Short circuit protection, Over heat of air compressor protection,Time delay system protection

Ozone function:


1 Use ozone water to clean the fish, meat. Food: it have good cleaning effect and keep long time fresh

2 Use ozone water to clean the vegetables or fruits: it can decompose the residual pesticides or toxic chemicals.

3 Ozone water to clean the ancient rice: it can wipe off the mildew smell or carcinogens.

4 Use ozone water to clean the air .it can analyze the bacillus. Lampblack, paint and footgear smell from air or other malfeasances. and can prevent the ailment to diffuse

5 Use ozone water to wash hands or clean the dishware. cooker : it can clean and cleanr can prevent the bacillus to chiasmic contaminate

6 Use ozone water to clean the women or baby article. Towel. bedding.: it can clean and cleanr wipe off the rudimental better than cleanor

7 Use ozone water to nurse body or nurse skin: people can use it to clean the tartar. wash face to be beauty and white , can wipe off the acne or whelk and can prevent the illness from skin

8 Use ozone water to defend ill or curative: it have good curative effect of halitosis. Tooth agnail. Grey nail. hemorrhoids, vagina agnail or beriberi

9 Use ozone water to breed fish: it can clean and cleanr. Clean the water quality. In crease the active Oxygen. It is easier firm to survive and pullulate.

10 use ozone water to clean the pets : it can prevent the bacillus produce and the ailment to diffuse.



Specifications:


Item Unit NT-YFC5G NT-YFC10G NT-YFC15G NT-YFC20G NT-YFC30G
Oxygen flow rate LPM 3 3.5 5 8 10
Ozone concentration Mg/L 48.5~52.3 48.5~52.3 49.5~51.2 38.9~41.7 53.2~56.1
Ozone output G/Hr 5 10~11 14.8~15.4 18.6~20 32~34
Power KW ≤0.48 ≤0.81 ≤0.924 ≤1.00 ≤1.23
Current A 2.2 3.6 4.2 4.5 - 4.7 5.6 ± 5%
Voltage V 220V / 50HZ
NW KG 64 86 89 92 97
Size cm 45x50x84 50×66×95 45 * 93 * 118
Noted:

1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug

Our Service :
1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your question in fluent English.
3.Customized design is avaliable.OEM&ODM are welcomed.
4.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to our distributor.
