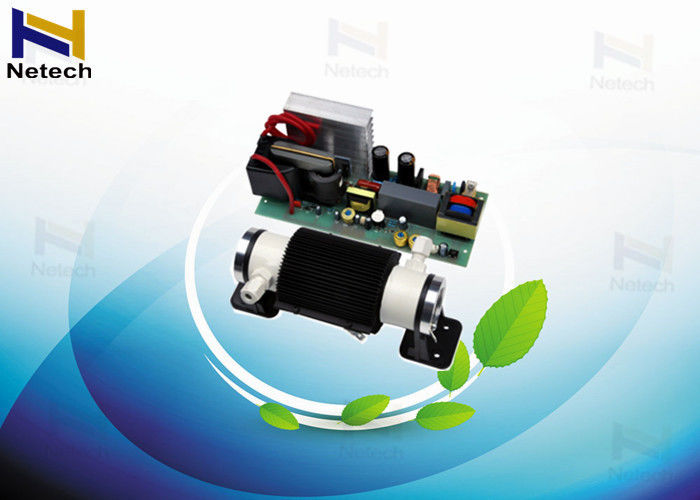

Air Cooling 7g Corona Generator Ozone Ceramic Tube Easy To Maintain And Install
1. Quick Detail
ozone generator spare parts
Easy to maintain and install
air cooling ceramic .
Low working voltage
high concentration
2. Description
MOQ 1 sets
ozone produced medium ceramic
output 1g 3g 5g 6g 7g
cooling way air cooling
adjustable range 20%-100%
ozone produced method corona discharge
voltage 220V/ 50Hz or 110V/60Hz
warranty repair or change new parts during 12 months
3. Features
Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around 28~65 Mg/L, which is much higher than conventional <products
Domestic product-got domestic in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, <high efficiency and stable ozone output.
It saves space effectively. The size is 1/4 smaller than similar products.
4. Specifications
CH-PTF1G ~3G
| Item | Unit | CH-PTF | ||||
| 1G (12V) | 1G (220V) | 1G (110V) | 3GM | 3GA | ||
| Ambient temperature | ℃ | 21.6 | 25 | 23.6 | 21 | |
| Ambient humidity | % | 40 | 50 | 21.6 | 40 | |
| Power | W | ≤14.4 | ≤15 | ≤15 | ≤50 | ≤80 |
| Oxygen feed flow rate | LPM | 0.3~0.5 | 0.3~1 | 0.3~1 | 0.5-1 | |
| Ozone concentration | Mg/L | 49~40 | 49~30 | 49~30 | 81.6-49.2 | |
| Ozone output | G/Hr | 0.88~1.2 | 0.88~1.8 | 2.4-2.95 | ||
| Ozone output adjustable range | % | / | / | 20~100 | ||
| Line power supply | V/Hz | 110/60 220/50 | ||||
| Cooling way | / | Air cooling | ||||
| Diameter of cooling fan | mm | 50*50 | 50*50 | 50*50 | 120 | |
| Diameter of gas inlet/outlet | mm | EDФ6 | ||||
| Power supply dimensions | mm | 105*57*50 | 96*47*32 | 96*47*32 | 153×60×53 | 201×86×83 |
| ozone tube dimensions | mm | 125*50*50 | 165×90*90 | |||
| Ozone tube weight | Kg | 0.2 | 0.5 | |||
| Power supply weight | Kg | 0.15 | 0.59 | 0.76 | ||

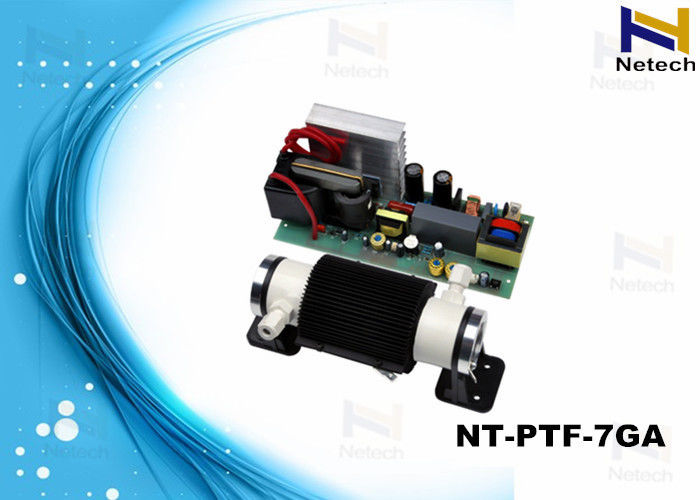

CH-PTF5G ~7G
| Item | Unit | CH-PTF | ||||
| 5GM | 5GA | 6GM | 6GA | 7GA | ||
| Ambient temperature | ℃ | 21 | 21 | 26 | 26 | |
| Ambient humidity | % | 40 | 49 | 49 | ||
| Power | W | ≤65 | ≤80 | ≤80 | ≤85 | ≤95 |
| Oxygen feed flow rate | LPM | 0.5-2 | 1~3 | 1~3 | ||
| Ozone concentration | Mg/L | 72~48 | 64.6~36.7 | 70~41.2 | ||
| Ozone output | G/Hr | 2.16~4.76 | 3.9~6.6 | 4.20~7.4 | ||
| Ozone output adjustable range | % | / | 20~100 | / | 20~100 | 20~100 |
| Line power supply | V/Hz | 110/60 220/50 | ||||
| Cooling way | / | Air cooling | ||||
| Diameter of cooling fan | mm | 150 | ||||
| Diameter of gas inlet/outlet | mm | EDФ6 | ||||
| Power supply dimensions | mm | 177*66*53 | 201*86*83 | 177*66*53 | 201*86*83 | 201*86*83 |
| ozone tube dimensions | mm | 185*90*90 | 200*90*90 | 212*90*90 | ||
| Ozone tube weight | Kg | 0.53 | 0.56 | 0.65 | ||
| Power supply weight | Kg | 0.59 | 0.76 | 0.59 | 0.76 | 1.1 |
