18-60g Ozone Generator Parts Ozone Water Purifier With External Electrodes

18-60g Ozone Generator Parts Ozone Water Purifier With External Electrodes

    • 18-60g Ozone Generator Parts Ozone Water Purifier With  External Electrodes
  • 18-60g Ozone Generator Parts Ozone Water Purifier With  External Electrodes

    Product Details:

    Place of Origin: China Guangzhou
    Brand Name: Netech
    Model Number: NT-PC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Safe double carton package with foam inside for protection
    Delivery Time: 3 to 5 days
    Payment Terms: paypal,western union,T/T,credit card
    Supply Ability: 1000 per weeks
    Contact Now
    Detailed Product Description
    Warranty: 1 Year MOQ: 1 Set
    Ozone Output: 18g/hr 30g/hr 40g/hr 60g/hr 80g/hr Adjustabl: 20% To 100%
    Cooling Way: Internal / External Water Cooled Usage: Ozone Machine Assemble
    High Light:

    ceramic ozone tube

    ,

    ozone generator tube

    18-60g Ozone Generator Parts Ozone Water Purifier With External Electrodes





    1. Description



    MOQ 1 sets

    ozone produced medium enamel

    ozone tube weight 4.90kg

    adjustable range 20%-100%

    ozone produced method corona discharge

    voltage 220V/ 50Hz or 110V/60Hz

    cooling way internal & external water cooling

    warranty repair or change new parts during 12 month

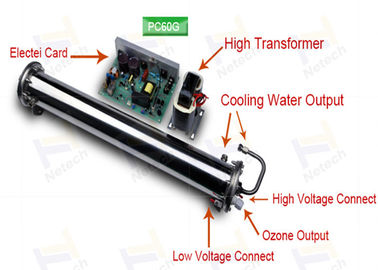

    2. Electrodes



    Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless steel external electrode, it produces high concentration ozone output. It uses insulation materials for connections, for preventing creepage.



    Cooling way

    Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.



    Adjustable ozone output: 20-100%.

    Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.





    3. Specifications



    Item Unit NT-PC10G NT-PC20G NT-PC30G NT-PC50G NT-PC60G
    Oxygen flow rate LPM 1-3 2-6 3-10 5-15 8-18
    Ozone concentration Mg/L 88-58 88.6-57 87.5-56.8 90-56 90-60
    Ozone output G/Hr 5.28-10.44 10.63-20.52 15.75-34.08 27-50.40 43.2-64.80
    Power Kw 0.2 0.28 0.38 0.55 0.75
    Output frequency KHz 2.4
    High voltage output V 2800
    Cooling method Water cooling for internal & external electrodes
    Cooling water flow rate LPM 30 48
    Cooling water temperature °C 35
    Fitting size mm 1.Air inlet & ozone outlet: EDφ8mm 2.Cooling water: EDφ10mm
    Adjustable range % 20-100
    Power supply V/Hz 110/220V 50/60HZ
    Fuse A 3 5 10
    Ozone tube dimension mm 250×105×125 310×105×125 430×105×125 575×105×125 778×105×125
    Mounting hole foot print of ozone tube mm 127×44(φ5) 195×44(φ5) 320×44(φ5) 450×44(φ5) 555×44(φ5)
    Power supply dimension mm 200×100×85 190×150×85 210×150×80
    Mounting hole foot print of power supply mm 155×127 155×127 192×177 192×177 243×208
    Ozone tube weight Kg 2.50 3.00 3.60 4.90 5.45
    Power supply weight Kg 1 2.40





    4. After sales service



    We provide 12 month free maintenance.

    The buyer should return the product in the original conditions to us and should

    bear the shipping costs for return.




    Question and answer
    Is ozone harmful to human body ?
    Once the ozone concentration fails to meet the hygiene and safety standard,
    we can notice with our sense of smell and dodge away or take actions to avoid
    further leakage.
    So far there is no one death reported caused by ozone poisoning.
    Does the ozone generator work efficently ?
    Undeniably, ozone can clean and remove odor and formaldehyde.
    It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
    bacteria efficently and resolve the harmful material in a short time.
