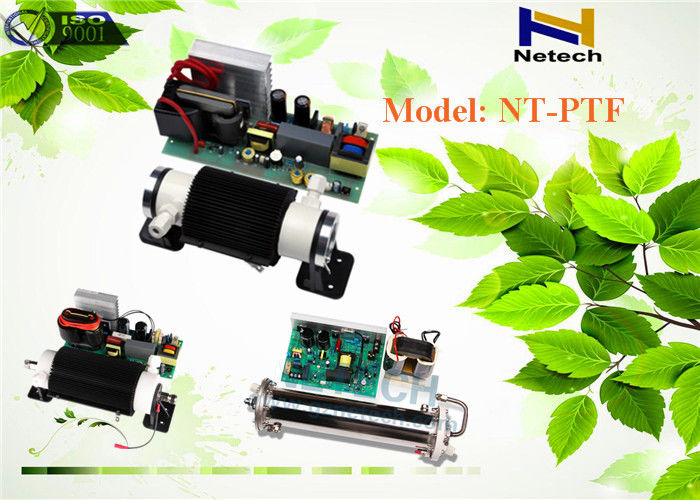

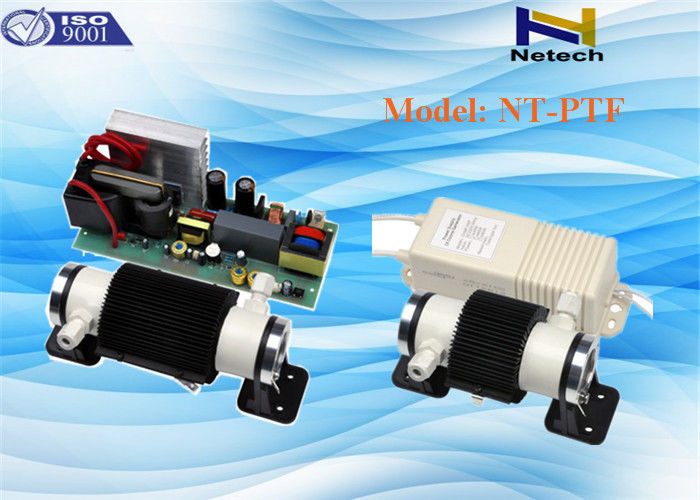

Air Cooling Ceramic Ozone Tube For Water Treatment Ozone Generator Kits 1g -7g

Air Cooling Ceramic Ozone Tube For Water Treatment Ozone Generator Kits 1g -7g

  • High Light

    ozone accessories

    ,

    ceramic ozone tube

  • Power Supply
    110V 220V
  • Cooling Way
    Air Cooling
  • Ozone Tube Weight
    0.5KG
  • Power Supply Weight
    0.76KG
  • Ambient Temperature
    21-26°C
  • Power
    ≤14.4W
  • Place of Origin
    Guangdong China
  • Brand Name
    Netech
  • Model Number
    NT-PTF
  • Minimum Order Quantity
    1 set
  • Price
    For further discussion
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    3-5 working days after received your payment
  • Payment Terms
    L/C D/A D/P T/T Western Union Credit Card/ Paypal
  • Supply Ability
    1000 sets per month

Air Cooling Ceramic Ozone Tube For Water Treatment Ozone Generator Kits 1g -7g

1g -7g Air Cooling Ceramic Ozone Tube For Water Treatment Ozone Generator Kits


Quick Detail


ozone generator spare parts
1. Easy to maintain and install
2. air cooling ceramic .
3, Low working voltage
4. high concentration

Description
MOQ 1 sets
ozone produced medium ceramic
output 1g 3g 5g 6g 7g
cooling way air cooling
adjustable range 20%-100%
ozone produced method corona discharge
voltage 220V/ 50Hz or 110V/60Hz
warranty repair or change new parts during 12 months

Features
Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around 28~65 Mg/L, which is much higher than conventional <products
Domestic product-got domestic in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, <high efficiency and stable ozone output.
It saves space effectively. The size is 1/4 smaller than similar products.



Item Unit NT-PTF
1GM 1GA 3GM 3GA 5GM 5GA 6GA
Oxygen feed flow rate LPM 0.5-2 1-3 1.2-3 1-2.5
Ozone concentration Mg/L 50.3-28 65-28 60-32 50-39
Ozone output G/Hr 1.5-3.36 3.9-5.04 4.32-5.76 3-5.85
Power Kw 0.040 0.050 0.080 0.085
Output frequency KHz 7-15
High voltage output V 3600V Peak to Peak
Power supply dimensions mm 165×65×52 200×75×83 165×65×52 200×75×83 165×65×52 200×75×83 215×87×85
Location of mounting holes of power supply mm 152(5) 190.5×57 152(5) 190.5×57 152(5) 190.5×57 /
Cooling method / Air cooling for internal and external electrode
Fitting size for air & ozone mm ID6, ED8
Ozone output adjustable range % / 20-100 / 20-100 / 20-100
Dew point °C -45
Line power supply V/Hz 110/220V 50/60Hz
Ozone tube dimensions mm 162×60 182×60 200×60 227×60
Mounting hole foot print of ozone tube mm 140×28(5) 160×28(5) 177×28(5)

204.5×28

(5)

Ozone tube weight Kg 0.50 0.53 0.56 0.65
Power supply weight Kg 0.59 0.76 0.59 0.76 0.59 0.76 1.10





Quality control

Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.


After sales service

We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.


Question and answer


Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one death reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficently and resolve the harmful material in a short time.
