High Ozone Concentration 60G Ozone Generator Enamel Tube Parts 110V / 60Hz
-
High Light
ozone accessories
,ozone generator tube
-
MaterialEnamel
-
Cooling WayWater Cooling
-
UsageOzone Machine Assemble
-
Voltage220V/ 50Hz Or 110V/60Hz
-
Adjustable Ozone Output20-100%
-
AdvantagesHigh Ozone Concentration Output
-
Place of OriginChina Guangzhou
-
Brand NameNetech
-
Model NumberNT-PC
-
Minimum Order Quantity1
-
Packaging DetailsSafe double carton package with foam inside for protection
-
Delivery Time3 to 5 days
-
Payment Termspaypal,western union,T/T,credit card
-
Supply Ability1000 per weeks

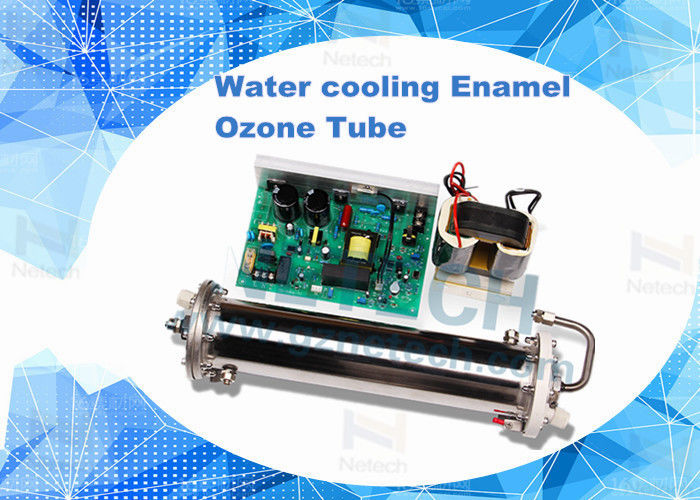

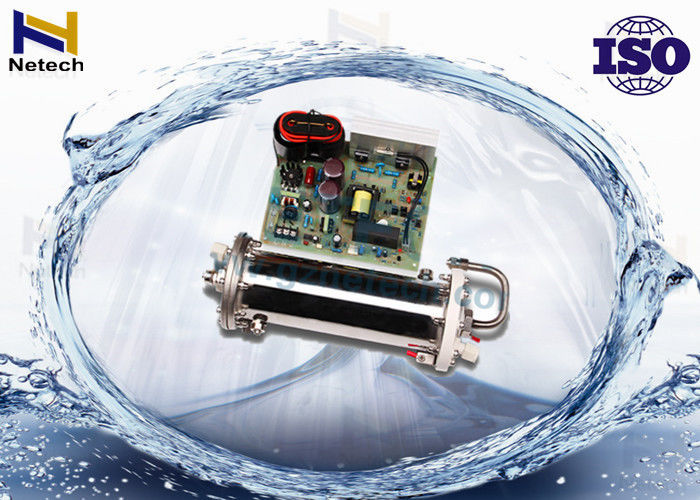

High Ozone Concentration 60G Ozone Generator Enamel Tube Parts 110V / 60Hz
High Ozone Concentration 60G Ozone Generator Enamel Tube Parts By Water Cooling
1. Description
MOQ 1 sets
ozone produced medium enamel
ozone tube weight 4.90kg
adjustable range 20%-100%
ozone produced method corona discharge
voltage 220V/ 50Hz or 110V/60Hz
cooling way internal & external water cooling
warranty repair or change new parts during 12 month
2. Specifications
| Item | Unit | NT-PC10G | NT-PC20G | NT-PC30G | NT-PC50G | NT-PC60G |
| Oxygen flow rate | LPM | 1-3 | 2-6 | 3-10 | 5-15 | 8-18 |
| Ozone concentration | Mg/L | 88-58 | 88.6-57 | 87.5-56.8 | 90-56 | 90-60 |
| Ozone output | G/Hr | 5.28-10.44 | 10.63-20.52 | 15.75-34.08 | 27-50.40 | 43.2-64.80 |
| Power | Kw | 0.2 | 0.28 | 0.38 | 0.55 | 0.75 |
| Output frequency | KHz | 2.4 | ||||
| High voltage output | V | 2800 | ||||
| Cooling method | Water cooling for internal & external electrodes | |||||
| Cooling water flow rate | LPM | 30 | 48 | |||
| Cooling water temperature | °C | 35 | ||||
| Fitting size | mm | 1.Air inlet & ozone outlet: EDφ8mm 2.Cooling water: EDφ10mm | ||||
| Adjustable range | % | 20-100 | ||||
| Power supply | V/Hz | 110/220V 50/60HZ | ||||
| Fuse | A | 3 | 5 | 10 | ||
| Ozone tube dimension | mm | 250×105×125 | 310×105×125 | 430×105×125 | 575×105×125 | 778×105×125 |
| Mounting hole foot print of ozone tube | mm | 127×44(φ5) | 195×44(φ5) | 320×44(φ5) | 450×44(φ5) | 555×44(φ5) |
| Power supply dimension | mm | 200×100×85 | 190×150×85 | 210×150×80 | ||
| Mounting hole foot print of power supply | mm | 155×127 | 155×127 | 192×177 | 192×177 | 243×208 |
| Ozone tube weight | Kg | 2.50 | 3.00 | 3.60 | 4.90 | 5.45 |
| Power supply weight | Kg | 1 | 2.40 | |||
3. After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
4. Question and answer
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one death reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficently and resolve the harmful material in a short time.
Our products are sold all over the world, you can rest assured.
