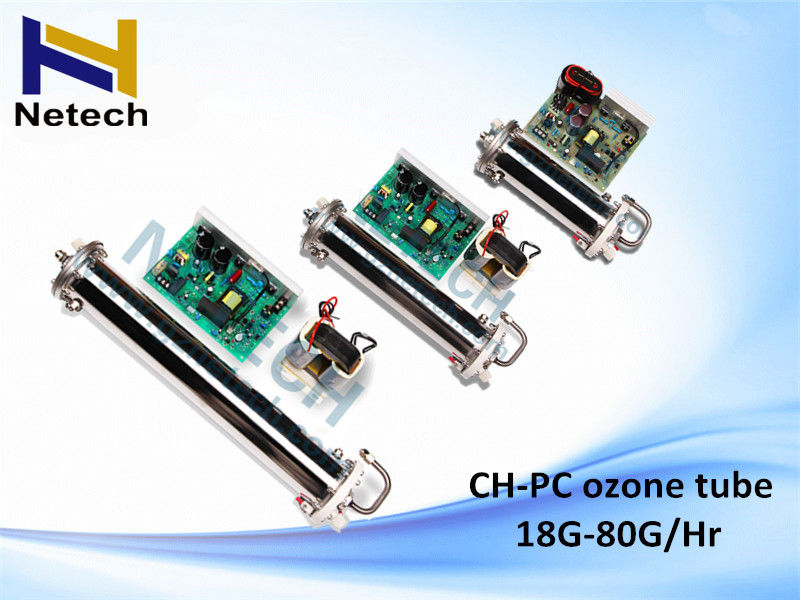

Corona Discharge 60G Ozone Generator Parts For Mineral Water Treatment System
Quick Detail:
Cooled method | cooling way internal & external water cooling |
adjustable range | 20%-100% |
MOQ | 1 set |
ozone produced method | corona discharge |
voltage | 220V/ 50Hz or 110V/60Hz |
Warranty | 12 months |
Descriptions:
1. Electrodes:
Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless steel external electrode, it produces high concentration ozone output. It uses insulation materials for connections, for preventing creepage.
2. Cooling way
Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.
Specification:
Item | Unit | CH-PC18G | CH-PC30G | CH-PC40G | CH-PC60G | CH-PC80G |
Ambient temperature | ℃ | 23 | 23 | 23.9 | 23.9 | 24 |
Ambient humidity | % | 38 | 38 | 37 | ||
Oxygen flow rate | LPM | 1~4 | 2~8 | 3~10 | 5~17 | 8~20 |
Ozone concentration | Mg/L | 112~78 | 123~72 | 123~70 | 120-72 | 118-74 |
Ozone output | G/Hr | 6.7-18.7 | 14.8~34.6 | 22.1-42 | 36-73 | 56-88 |
Power | Kw | ≤0.22 | ≤0.3 | ≤0.4 | ≤0.6 | ≤0.8 |
Cooling method | Water cooling for internal & external electrodes | |||||
Cooling water flow rate | LPM | ≥2 | ||||
Cooling water temperature | ℃ | ambient temperature ± 8℃ | ||||
Diameter of gas inlet/outlet | mm | 1.Air inlet & ozone outlet: EDφ8mm | ||||
Diameter of water inlet/outlet | EDφ10mm | |||||
Adjustable range | % | 20-100 | ||||
Power supply | V/Hz | 110/220V 60/50HZ | ||||
Fuse | A | 3 | 5 | 10 | ||
Ozone tube dimension | mm | 285*160*125 | 340*160*125 | 460*160*125 | 600*160*125 | 705*160*125 |
Power supply dimension | mm | 212*90*95 | 189*146*95 | 210*146*62 | ||
Ozone tube weight | Kg | 2.5 | 3 | 3.6 | 4.9 | 5.45 |
Power supply weight | Kg | 1 | 2.4 |
About NETECH:
· Having 10 years production experienced .We are trusty business partner.
· Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.
· CH-PC Production Capacity: 3000 pcs per month.
· We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
· We supply OEM service according to customers' requests and give out professional suggestions.
>>>>>Distributors Offer : Welcome to be our distributor
