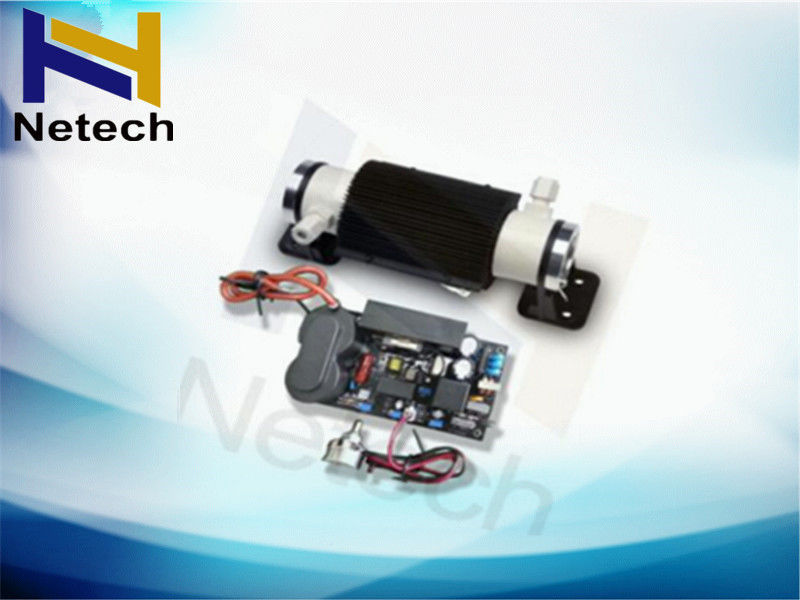

Air Cooling 3g - 7g Ozone Generator Parts Ceramic Ozone Tube With Power Board

Air Cooling 3g - 7g Ozone Generator Parts Ceramic Ozone Tube With Power Board

Air Cooling 3g - 7g Ozone Generator Parts Ceramic Ozone Tube With Power Board
Air Cooling 3g - 7g Ozone Generator Parts Ceramic Ozone Tube With Power Board

Product Details:

Place of Origin: China
Brand Name: OZOCENTER
Certification: CE/ISO/PATENT
Model Number: CH-PTF

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 46USD to 52USD
Packaging Details: Carton or Wooden case
Delivery Time: 3 to 5days
Payment Terms: paypal,western union,T/T,credit card
Supply Ability: 1000 per weeks
Contact Now
Detailed Product Description
Commodity Name: Ceramic Tube Ozone Output: 3g/hr To 7g/hr
Discharge Way: Corona Discharge Ozone Adjustable: 20-100%
Power: 85w Warranty: 1 Year
Life Time: 20000 Hours ODM/OEM: Applicable
High Light:

ceramic ozone tube

,

ozone generator tube

Air cooling 3g to 7g ozone generator parts ozone tube with power board for water



Detailed Product Description



Ambient temperature 21 Oxygen feed flow rate 0.5-1
Cooling Mode: Air Cooling Ozone output 4.2-7.2
Ambient humidity 40 Power supply weight 0.76
Power ≤80 ozone tube dimensions 165×90*90







Quick Detail



1, Easy to maintain and install

2. air cooling ceramic .

3, Low working voltage

4. high concentration





Description



MOQ 1 sets
ozone produced medium ceramic
output 1g 3g 5g 6g 7g
cooling way air cooling
adjustable range 20%-100%
ozone produced method corona discharge
voltage 220V/ 50Hz or 110V/60Hz
warranty repair or change new parts during 12 months





Features



  1. Extremely low rate of ozone decay & high ozone concentration.

Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.

  1. Domestic product-got domestic in 2008.

Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.

  1. Low working voltage

The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.

  1. Small in size.

It saves space effectively. The size is 1/4 smaller than similar products.

  1. Easy to maintain and install

CH-PTF3G-1 ~5G-1

Item Unit CH-PTF
3G-1 (12V,24V) 3G-1 (220V) 3G-1 (110V) 5G-1 (12V,24V) 5G-1 (220V) 5G-1 (110V)
Ambient temperature 21 21
Ambient humidity % 40 40
Power W ≤80 ≤80
Oxygen feed flow rate LPM 0.5-1 0.5-2
Ozone concentration Mg/L 81.6-49.2 72~48
Ozone output G/Hr 2.4-2.95 2.16~4.76
Ozone output adjustable range % 20~100 20~100
Line power supply V/Hz 12V 24V 110/60 220/50
Cooling way / Air cooling
Diameter of cooling fan mm 120 120
Diameter of gas inlet/outlet mm EDФ6
Power supply dimensions mm 158*75*68 158*75*68
ozone tube dimensions mm 165×90*90 185*90*90
Ozone tube weight Kg 0.5 0.53
Power supply weight Kg 0.52 0.52






CH-PTF6G-1 ~7G-1

Item Unit CH-PTF
6G-1 (12V,24V) 6G-1 (220V) 6G-1 (110V) 7G-1 (12V,24V) 7G-1 (220V) 7G-1 (110V)
Ambient temperature 26 26
Ambient humidity % 49 49
Power W ≤85 ≤95
Oxygen feed flow rate LPM 1~3 1~3
Ozone concentration Mg/L 64.6~36.7 70~41.2
Ozone output G/Hr 3.9~6.6 4.20~7.4
Ozone output adjustable range % 20~100 20~100
Line power supply V/Hz 12V 24V 110/60 220/50
Cooling way / Air cooling
Diameter of cooling fan mm 150
Diameter of gas inlet/outlet mm EDФ6
Power supply dimensions mm 158*75*68 158*75*68
ozone tube dimensions mm 200*90*90 212*90*90
Ozone tube weight Kg 0.56 0.65
Power supply weight Kg 0.52 0.52






Quality control



Every procedure has personnel inspection.

All the products must be tested and qualified before packaging.





After sales service



We provide 12 month free maintenance.

The buyer should return the product in the original conditions to us and should

bear the shipping costs for return.





Question and answer


Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one death reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficently and resolve the harmful material in a short time.
