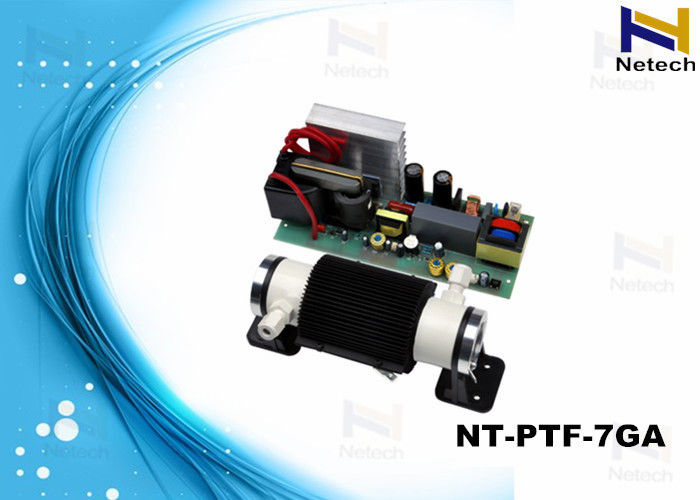

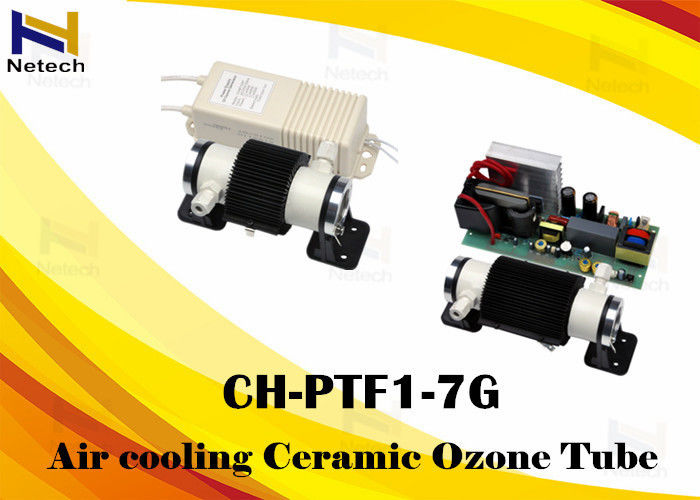

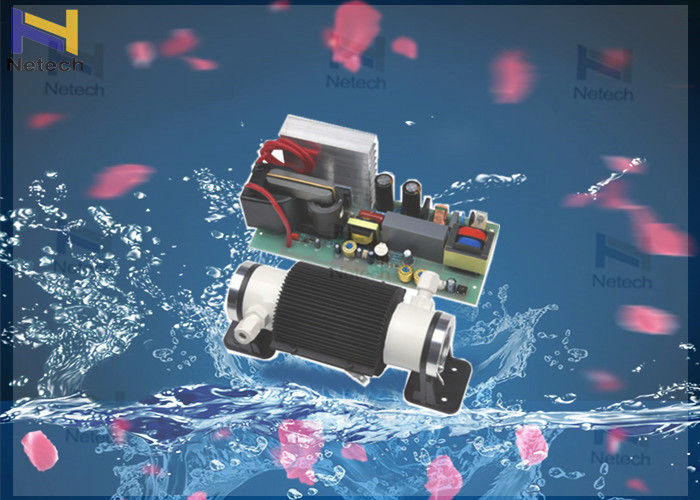

Stable Ozone Output 3-7g Ozone Generator Parts Air Cooling Ozone Ceramic Tube
1. Description
MOQ 1 sets
ozone produced medium ceramic
output 1g 3g 5g 6g 7g
cooling way air cooling
adjustable range 20%-100%
ozone produced method corona discharge
voltage 220V/ 50Hz or 110V/60Hz
warranty repair or change new parts during 12 months
2. Features
Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around 28~65 Mg/L, which is much higher than conventional <products
Domestic product-got domestic in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, <high efficiency and stable ozone output.
It saves space effectively. The size is 1/4 smaller than similar products.
3. Specifications
CH-PTF1G ~3G
| Item | Unit | CH-PTF | ||||
| 1G (12V) | 1G (220V) | 1G (110V) | 3GM | 3GA | ||
| Ambient temperature | ℃ | 21.6 | 25 | 23.6 | 21 | |
| Ambient humidity | % | 40 | 50 | 21.6 | 40 | |
| Power | W | ≤14.4 | ≤15 | ≤15 | ≤50 | ≤80 |
| Oxygen feed flow rate | LPM | 0.3~0.5 | 0.3~1 | 0.3~1 | 0.5-1 | |
| Ozone concentration | Mg/L | 49~40 | 49~30 | 49~30 | 81.6-49.2 | |
| Ozone output | G/Hr | 0.88~1.2 | 0.88~1.8 | 2.4-2.95 | ||
| Ozone output adjustable range | % | / | / | 20~100 | ||
| Line power supply | V/Hz | 110/60 220/50 | ||||
| Cooling way | / | Air cooling | ||||
| Diameter of cooling fan | mm | 50*50 | 50*50 | 50*50 | 120 | |
| Diameter of gas inlet/outlet | mm | EDФ6 | ||||
| Power supply dimensions | mm | 105*57*50 | 96*47*32 | 96*47*32 | 153×60×53 | 201×86×83 |
| ozone tube dimensions | mm | 125*50*50 | 165×90*90 | |||
| Ozone tube weight | Kg | 0.2 | 0.5 | |||
| Power supply weight | Kg | 0.15 | 0.59 | 0.76 | ||
CH-PTF5G ~7G
| Item | Unit | CH-PTF | ||||
| 5GM | 5GA | 6GM | 6GA | 7GA | ||
| Ambient temperature | ℃ | 21 | 21 | 26 | 26 | |
| Ambient humidity | % | 40 | 49 | 49 | ||
| Power | W | ≤65 | ≤80 | ≤80 | ≤85 | ≤95 |
| Oxygen feed flow rate | LPM | 0.5-2 | 1~3 | 1~3 | ||
| Ozone concentration | Mg/L | 72~48 | 64.6~36.7 | 70~41.2 | ||
| Ozone output | G/Hr | 2.16~4.76 | 3.9~6.6 | 4.20~7.4 | ||
| Ozone output adjustable range | % | / | 20~100 | / | 20~100 | 20~100 |
| Line power supply | V/Hz | 110/60 220/50 | ||||
| Cooling way | / | Air cooling | ||||
| Diameter of cooling fan | mm | 150 | ||||
| Diameter of gas inlet/outlet | mm | EDФ6 | ||||
| Power supply dimensions | mm | 177*66*53 | 201*86*83 | 177*66*53 | 201*86*83 | 201*86*83 |
| ozone tube dimensions | mm | 185*90*90 | 200*90*90 | 212*90*90 | ||
| Ozone tube weight | Kg | 0.53 | 0.56 | 0.65 | ||
| Power supply weight | Kg | 0.59 | 0.76 | 0.59 | 0.76 | 1.1 |
clean: destroy variety of bacteria & viruses efficiently without secondary pollution.
clean and remove odor for farming.
clean and clean for food, such as vegetable and fruit.
clean and clean for daily supplies, such as clothes, kids' toy, pillow towel, tool etc. Ozone generator for removing Formaldehyde, Refrigerator keep fresh equipment.
Deodorization: eliminate mould, smoke etc.
Oxygen increasing: improve the oxygen level for air and water.
Health: air purification, expedite human metabolism.
Ozone purifer, Ozone air cleanr, Air purify for room, such as house, hotel, Karaoke, club, public house, Internet bar,game center, bus station, supermarket, office buildings, Restaurant air purifier.
Water Purifying and Cleaning.
5. Delivery
For 1-10 units, only 1-3 working days after payment confirmed.
(1).DHL, FEDEX, UPS, BY SEA, BY AIR.
(2).We will send the tracking number after the items production has been completed.
(3).The shipping cost does not include any import taxes, and buyers are responsible for customs duties.
6. After service
We provide 12-month free maintenance.The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced,the buyer should also pay for the costs of the parts to be replaced.
7. Question and answer
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one death reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficently and resolve the harmful material in a short time.
Our products are sold all over the world, you can rest assured.
