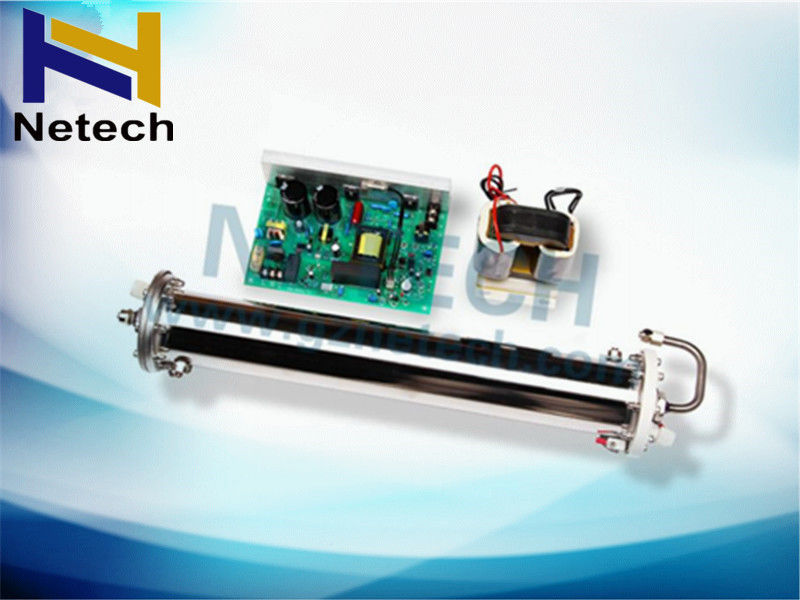

60g/hr water cooling enamel ozone generator tube for waste water treatment
ozone generator parts
1. concentration up to 95%
2. 20%-100% adjustable range
3. water cooling ozone enamel tube
4. high efficiency ozone output,
MOQ 1 sets
ozone produced medium enamel
ozone tube weight 4.90kg
adjustable range 20%-100%
ozone produced method corona discharge
voltage 220V/ 50Hz or 110V/60Hz
cooling way internal & external water cooling
warranty repair or change new parts during 12 month
Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless steel external electrode, it produces high concentration ozone output. It uses insulation materials for connections, for preventing creepage.
Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.
Adjustable ozone output: 20-100%.
Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.
|Oxygen flow rate||LPM||1~4||2~8||3~10||5~17||8~20|
|Cooling method||Water cooling for internal & external electrodes|
|Cooling water flow rate||LPM||≥2|
|Cooling water temperature||℃||ambient temperature ± 8℃|
|Diameter of gas inlet/outlet||mm||1.Air inlet & ozone outlet: EDφ8mm|
|Diameter of water inlet/outlet||EDφ10mm|
|Power supply||V/Hz||110/220V 60/50HZ|
|Ozone tube dimension||mm||285*160*125||340*160*125||460*160*125||600*160*125||705*160*125|
|Power supply dimension||mm||212*90*95||189*146*95||210*146*62|
|Ozone tube weight||Kg||2.5||3||3.6||4.9||5.45|
|Power supply weight||Kg||1||2.4|
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
Question and answer
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
So far there is no one death reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficently and resolve the harmful material in a short time.
