Fish Farming Portable Oxygen Machines For RAS Aquaculture System 5L 10L 15L 20L

Fish Farming Portable Oxygen Machines For RAS Aquaculture System 5L 10L 15L 20L

  • High Light

    industrial oxygen generator

    ,

    portable oxygen machines

  • Color
    White
  • Gas Type
    Oxygen
  • Material
    Metal And 316L Stainless Steel
  • Guarantee
    One Year
  • Output Type
    Stable And Continuously
  • Oxygen Concentration
    90%±3%
  • Pressure Of Oxygen Outlet
    ≤0.1 MPA
  • Place of Origin
    Guangdong China
  • Brand Name
    Netech
  • Model Number
    NT-OLC
  • Minimum Order Quantity
    1 set
  • Price
    For futher discussion
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    5-10 days after payment confirmed
  • Payment Terms
    L/C D/A D/P T/T Western Union Credit Card/ Paypal
  • Supply Ability
    1000 sets per month

Fish Farming Portable Oxygen Machines For RAS Aquaculture System 5L 10L 15L 20L

Fish Farming Oxygen Generator For RAS Aquaculture System 5L 10L 15L 20L





Description:



warranty period 1 year
oxygen concentration 90.5% ± 3%
voltage 220V / 50Hz
output oxygen pressure ≤ 0.1 Mpa
oxygen output 5LPM,10LPM,15LPM,20LPM,etc
technology PSA (Pressure swinging assorpsion)

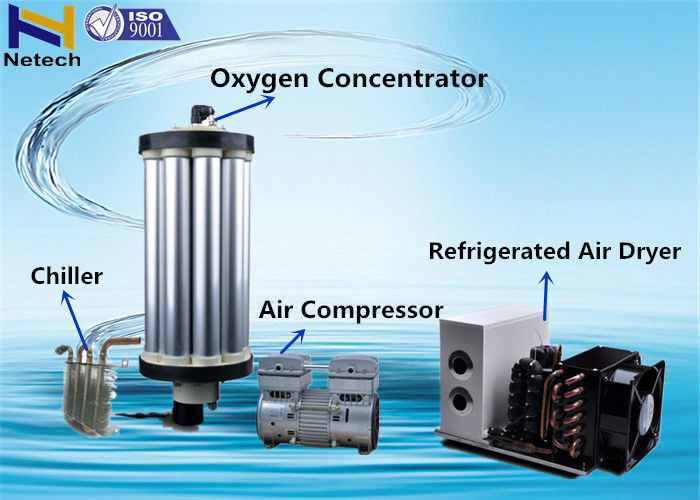

Configuration of Oxygen concentrator
1. Built-in oil free air compressor
2. Built-in refrigerated air dryers
3. High efficiency PSA oxygen generate unit
4. Oxygen concentration: 90%±3%
5. Pressure of oxygen outlet: ≤0.1 MPA
6. Control: Door lock, Amp-meter, Working indicator, Power indicator, On/Off, Oxygen flow meter,



Application:



Industrial oxygen generator used for aquaculture, welding, cutting or feeding oxygen to ozone machine etc.

1. Used with import oxygen molecular sieve

2. With built in air compressor, refrigerant dryer and oxygen generation unit.

3. Under humidity is above 85%-90%, Refrigerated dryer is necessary to dry the hot compressed air which pumps into oxygen bed, to protect oxygen life time.

4. Control: Door lock, Amp meter, Working indicator, Power indicator, On/Off, Oxygen flow meter, Voltmeter, Oxygen outlet, Fuse, Power input



Advantage of Oxygen concentrator



1. Low working temperature of air compressor ,thus extending service life of air compressor

2. Built in Small refrigerated air dryer ,thus oxygen concentrator is compact .

3. Oxygen concentrator feed dry, cool ,clean air ,thus extending service life

4. stable oxygen output ,high oxygen purity



Specifications:



Model Unit NT-05LC NT-010LC NT-015LC NT-020LC NT-030LC NT-040LC
Oxygen flow rate LPM 5 10 15 20 30 40
Oxygen concentration % 90±3 90±3 90±3 90±3 90±3 90±3
Dimension cm 50×84×95 67×102×950
Output oxygen pressure Mpa ≤0.1 Mpa
Voltage V 220V
Power W 800 1060 1800 2120 3180 4240



Fish Farming Portable Oxygen Machines For RAS Aquaculture System 5L 10L 15L 20L 0
