Air Cooling Ceramic 1g - 7g Ozone Generator Parts With Low Working Voltage

Air Cooling Ceramic 1g - 7g Ozone Generator Parts With Low Working Voltage

Products - Ozone Generator Parts
  • High Light

    ozone accessories

    ,

    ozone generator tube

  • Voltage
    12V 110V 220V
  • Ozone Generating Way
    Corona Discharge
  • Ozone Output Control
    20-100%
  • Material
    Ceramic
  • Ozone Output
    1g 3g 5g 6g 7g
  • Cooling Way
    Air Cooling
  • Place of Origin
    Guangdong China
  • Brand Name
    Netech
  • Model Number
    CH-PTF
  • Minimum Order Quantity
    1
  • Price
    For further discussion
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    2-3 days after payment confirmed
  • Payment Terms
    L/C D/A D/P T/T Western Union Credit Card/ Paypal
  • Supply Ability
    1000 sets per month

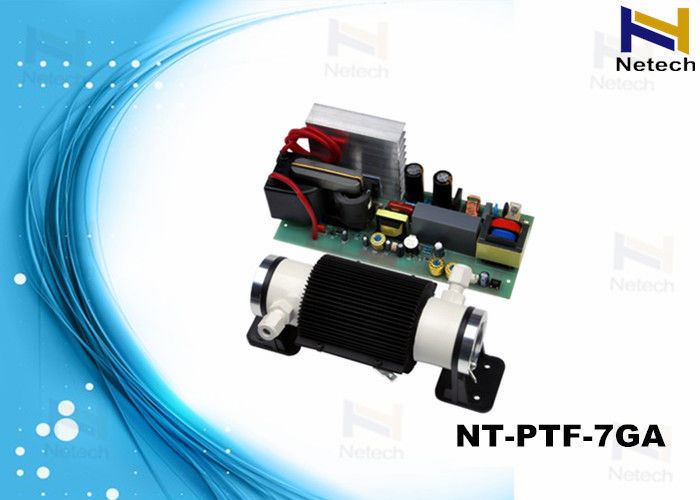

Air Cooling Ceramic 1g - 7g Ozone Generator Parts With Low Working Voltage

  • Air Cooling Ceramic 1g - 7g Ozone Generator Parts With Low Working Voltage
  • Air Cooling Ceramic 1g - 7g Ozone Generator Parts With Low Working Voltage
  • Air Cooling Ceramic 1g - 7g Ozone Generator Parts With Low Working Voltage
  • Air Cooling Ceramic 1g - 7g Ozone Generator Parts With Low Working Voltage
  • Air Cooling Ceramic 1g - 7g Ozone Generator Parts With Low Working Voltage
Get Price Contact Now

Air Cooling Ceramic 1g - 7g Ozone Generator Parts With Low Working Voltage





CH-PTF ozone tube use the high pure ceramic, SS 316L of internal electrode, connections which are best anti-oxidation material for ensuring several years running.





Features:



1. Extremely low rate of ozone decay & high ozone concentration.

Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.

2.Domestic product-got domestic in 2008.

Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.

3.Low working voltage

The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.

4.Small in size.

It saves space effectively. The size is 1/4 smaller than similar products.

5. Easy to maintain and install





Specifications:



CH-PTF1G ~3G

Item Unit CH-PTF
1G (12V) 1G (220V) 1G (110V) 3GM 3GA
Ambient temperature ℃ 21.6 25 23.6 21
Ambient humidity % 40 50 21.6 40
Power W ≤14.4 ≤15 ≤15 ≤50 ≤80
Oxygen feed flow rate LPM 0.3~0.5 0.3~1 0.3~1 0.5-1
Ozone concentration Mg/L 49~40 49~30 49~30 81.6-49.2
Ozone output G/Hr 0.88~1.2 0.88~1.8 2.4-2.95
Ozone output adjustable range % / / 20~100
Line power supply V/Hz 110/60 220/50
Cooling way / Air cooling
Diameter of cooling fan mm 50*50 50*50 50*50 120
Diameter of gas inlet/outlet mm EDФ6
Power supply dimensions mm 105*57*50 96*47*32 96*47*32 153×60×53 201×86×83
ozone tube dimensions mm 125*50*50 165×90*90
Ozone tube weight Kg 0.2 0.5
Power supply weight Kg 0.15 0.59 0.76




CH-PTF5G ~7G

Item Unit CH-PTF
5GM 5GA 6GM 6GA 7GA
Ambient temperature ℃ 21 21 26 26
Ambient humidity % 40 49 49
Power W ≤65 ≤80 ≤80 ≤85 ≤95
Oxygen feed flow rate LPM 0.5-2 1~3 1~3
Ozone concentration Mg/L 72~48 64.6~36.7 70~41.2
Ozone output G/Hr 2.16~4.76 3.9~6.6 4.20~7.4
Ozone output adjustable range % / 20~100 / 20~100 20~100
Line power supply V/Hz 110/60 220/50
Cooling way / Air cooling
Diameter of cooling fan mm 150
Diameter of gas inlet/outlet mm EDФ6
Power supply dimensions mm 177*66*53 201*86*83 177*66*53 201*86*83 201*86*83
ozone tube dimensions mm 185*90*90 200*90*90 212*90*90
Ozone tube weight Kg 0.53 0.56 0.65
Power supply weight Kg 0.59 0.76 0.59 0.76 1.1




Ceramic 1g - 7g Corona Generator Ozone Tube Ozone Generator Parts 12V 110V 220V

Ceramic 1g - 7g Corona Generator Ozone Tube Ozone Generator Parts 12V 110V 220V





QUALITY CONTROL



In order to ensure the best quality , every ozone generator has been strictly tested before delivery.We promise the good performance and all parts completely according to you





ABOUT US



Gold supplier--Guangzhou Netech Environmental Technology Co., Ltd ,15 years of experience in Water Treatment and Environment R&D and Engineering,

we are able to solve all your solutions in Environmental Protection and Air purifier and Water Treatment.



We provide 12 month free maintenance.

The buyer should return the product in the original conditions to us and should bear the shipping costs for return.

If any part is required to be replaced,the buyer should also pay for the costs of the parts to be replaced.
