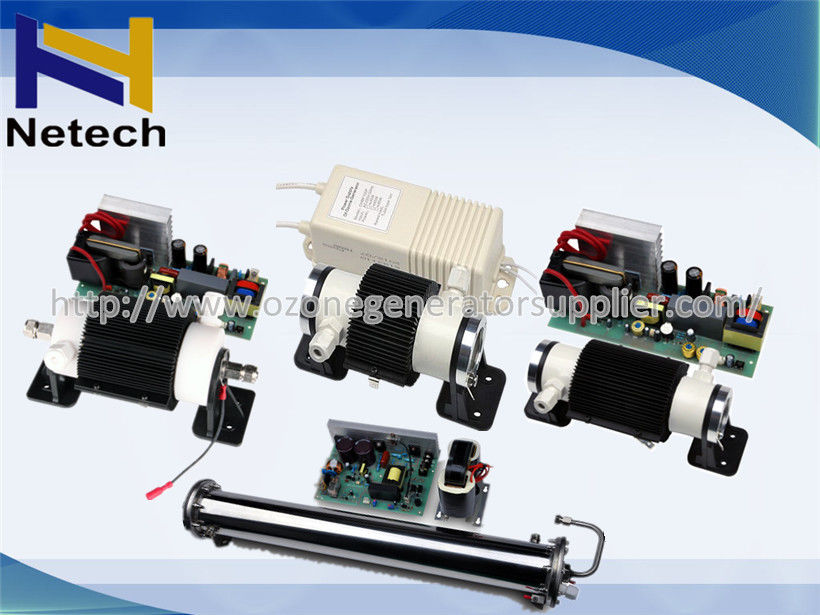

ozone generator parts
1. concentration up to 90%
2. 20%-100% adjustable range
3. water cooling
1.ozone produced medium enamel
2.adjustable range 20%-100%
3.ozone produced method corona discharge
4.voltage 220V/ 50Hz or 110V/60Hz
5.cooling way internal & external water cooling

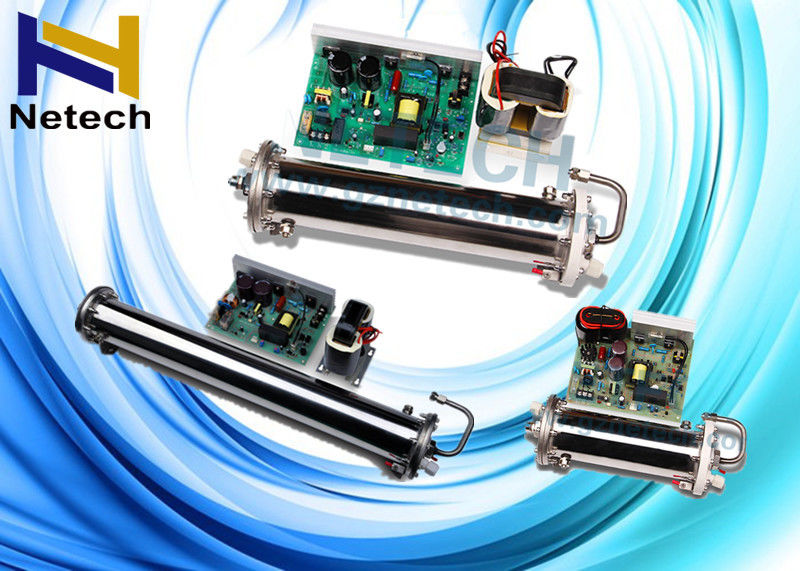

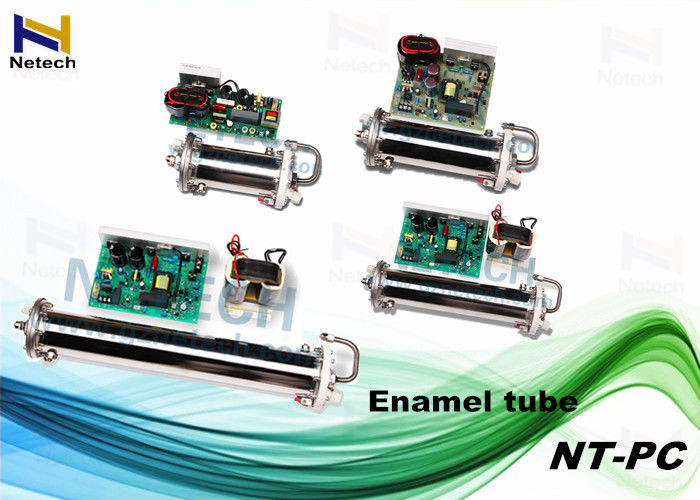

Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless stee l external electrode, it produces high concentration ozone output. It uses insulation materials for connections, for preventing creepage.
Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.
Adjustable ozone output: 20-100%.
Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.
|Oxygen flow rate||LPM||1~4||2~8||3~10||5~17||8~20|
|Cooling method||Water cooling for internal & external electrodes|
|Cooling water flow rate||LPM||≥2|
|Cooling water temperature||℃||ambient temperature ± 8℃|
|Diameter of gas inlet/outlet||mm||1.Air inlet & ozone outlet: EDφ8mm|
|Diameter of water inlet/outlet||EDφ10mm|
|Power supply||V/Hz||110/220V 60/50HZ|
|Ozone tube dimension||mm||285*160*125||340*160*125||460*160*125||600*160*125||705*160*125|
|Power supply dimension||mm||212*90*95||189*146*95||210*146*62|
|Ozone tube weight||Kg||2.5||3||3.6||4.9||5.45|
|Power supply weight||Kg||1||2.4|
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should bear the shipping costs for return.
Why choosing us?
1.Having 10 years production experienced .We are trusty business partner.·
2.Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product. ·
3.CH-PC Production Capacity: 1000 sets per week. ·
4.We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.·
5.We supply OEM service according to customers' requests and give out professional suggestions.
Distributors Offer : Welcome to be our distributor.
