80 Grams Water Cooling Ozone Generator Enamel Tube Parts With Transformer
-
High Light
ozone accessories
,ceramic ozone tube
-
TechnologyCorona Discharge
-
Cooling WayInternal & External Water Cooling
-
Voltage220V/ 50Hz Or 110V/60Hz
-
Adjustable Range20%-100%
-
MOQOne Set
-
Ozone Capacity18g,30g,40g,60g,80g
-
Place of OriginChina
-
Brand NameNetech
-
Model NumberCH-PC
-
Minimum Order Quantity1 set
-
PriceFor further discussion
-
Packaging DetailsSafe double carton package with foam inside for protection
-
Delivery Time2 to 3 working days after the payment confirmed
-
Payment Termspaypal,western union,T/T,credit card
-
Supply Ability1000 per weeks
80 Grams Water Cooling Ozone Generator Enamel Tube Parts With Transformer
80 Grams Water Cooling Ozone Generator Enamel Tube Parts With Transformer 110V
Quick Detail
| Model | CH-PC |
| Cooling method | water cooling |
| adjustable range | 20%-100% |
| ozone produced method | corona discharge |
| voltage | 220V/ 50Hz or 110V/60Hz |
Descriptions:

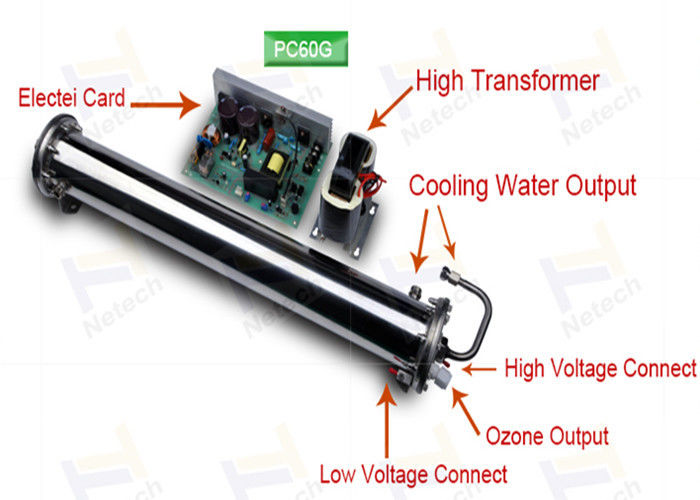

1. CH-PC series use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material.
2. Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.
3. Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.
Specifications:
| Item | Unit | CH-PC18G | CH-PC30G | CH-PC40G | CH-PC60G | CH-PC80G |
| Ambient temperature | ℃ | 23 | 23 | 23.9 | 23.9 | 24 |
| Ambient humidity | % | 38 | 38 | 37 | ||
| Oxygen flow rate | LPM | 1~4 | 2~8 | 3~10 | 5~17 | 8~20 |
| Ozone concentration | Mg/L | 112~78 | 123~72 | 123~70 | 120-72 | 118-74 |
| Ozone output | G/Hr | 6.7-18.7 | 14.8~34.6 | 22.1-42 | 36-73 | 56-88 |
| Power | Kw | ≤0.22 | ≤0.3 | ≤0.4 | ≤0.6 | ≤0.8 |
| Cooling method | Water cooling for internal & external electrodes | |||||
| Cooling water flow rate | LPM | ≥2 | ||||
| Cooling water temperature | ℃ | ambient temperature ± 8℃ | ||||
| Diameter of gas inlet/outlet | mm | 1.Air inlet & ozone outlet: EDφ8mm | ||||
| Diameter of water inlet/outlet | EDφ10mm | |||||
| Adjustable range | % | 20-100 | ||||
| Power supply | V/Hz | 110/220V 60/50HZ | ||||
| Fuse | A | 3 | 5 | 10 | ||
| Ozone tube dimension | mm | 285*160*125 | 340*160*125 | 460*160*125 | 600*160*125 | 705*160*125 |
| Power supply dimension | mm | 212*90*95 | 189*146*95 | 210*146*62 | ||
| Ozone tube weight | Kg | 2.5 | 3 | 3.6 | 4.9 | 5.45 |
| Power supply weight | Kg | 1 | 2.4 | |||
ABOUT NETECH
· Having 10 years production experienced .We are trusty business partner.
· Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.
· CH-PC Production Capacity: 3000 pcs per month.
· We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
· We supply OEM service according to customers' requests and give out professional suggestions.
